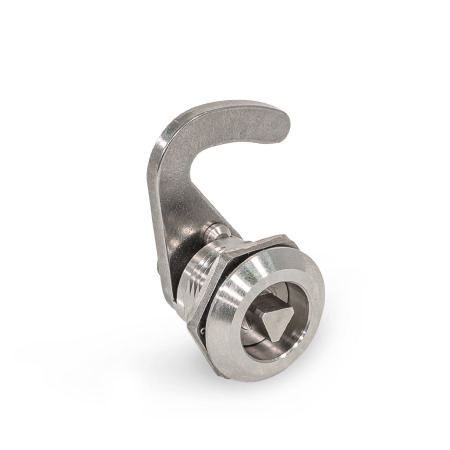

Type: DK - With triangular spindle
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Operating Instruction GN 115.8
Construction and Assembly Instructions
IP Protection Classes
Stainless Steel Characteristics
Product description
Cam latches with hook GN 115.8 and latch bracket are mainly used for sliding doors and flaps. The latching action is in a radial direction to the axis of rotation, resulting in a wide variety of different uses.
The latches GN 115.8 are supplied with loosely enclosed hook.
Specification
Cam latch housing
Stainless steel AISI 303N
Other parts
Stainless steel AISI 304
Protection class IP65
RoHS
Accessory
Socket Keys GN 119.2 (for Type AD7 / AD8)
Protective Caps GN 120
Finger Grip Opening Handles GN 120.1
On request
- Cam latches with other hook distance A
- Hook with other pivoting radius R
