GN 115.8 Cam Latches with Hook Stanless Steel, with Operating Elements

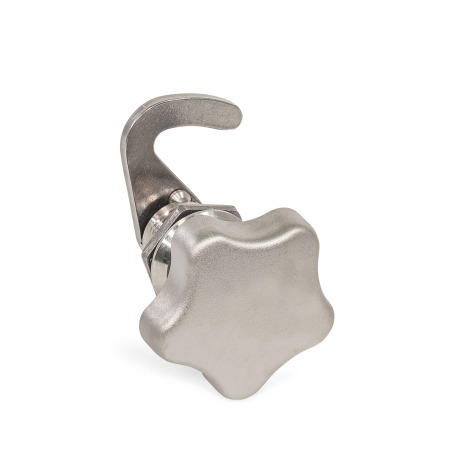

Cam Latches with Hook GN 115.8: Stanless Steel, with Operating Elements
Type: SG - With hand knob
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Operating Instruction GN 115.8 Construction and Assembly Instructions IP Protection Classes Stainless Steel Characteristics

Product description

Cam latches with hook GN 115.8 and latch bracket are mainly used for sliding doors and flaps. The latching action is in a radial direction to the axis of rotation, resulting in a wide variety of different uses.

The latches GN 115.8 are supplied with loosely enclosed hook.

Specification

Cam latch housing
Stainless steelN

  • AISI 303 for type SG / KGN / HGN
  • AISI 316 for type SKN / STN

Operating elements

  • Stainless steel AISI 304 for type SG
    Sheet metal drawn / Hub welded
  • Stainless steel AISI CF-8 for type KGN / HGN
  • Stainless steel AISI 316 for type SKN / STN

Other parts
Stainless steel AISI 304

RoHS

On request

  • Cam latches with other hook distance A
  • Hook with other pivoting radius R
GN 115.8 Stainless Steel Cam Latches with Hook, with Stainless Steel Operating Elements sketch
Hide technical drawing
GN 115.8 Stainless Steel Cam Latches with Hook, with Stainless Steel Operating Elements sketch

Part Options / Table

Type

SGWith hand knob
KGNWith wing knob
HGNWith lever
SKNWith wing knob
STNWith T-handle

Hook version

H1Pivoting radius R=28mm

Identification no.

1Without latch bracket
2With latch bracket
