Type: AD7 - With three exterior flats
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Material: N - Stainless steel
Identification no.: 1 - Without latch bracket
Operating Instruction GN 115.8
Construction and Assembly Instructions
IP Protection Classes
Plastic Characteristics
Stainless Steel Characteristics
Product description

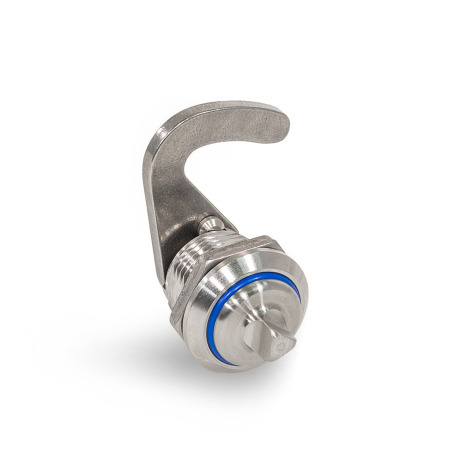

Cam latches with hook GN 115.8 with hook and latch bracket are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.
Thanks to multiple seals, the parts have the highest protection rating of IP 69k. The latches also satisfy the basic hygiene requirements according to DIN 1672-2 and DIN 14159.
The latches GN 115.8 are supplied with loosely enclosed hook.
Specification
Cam latch housing
Stainless steel AISI 303N
Other parts
Stainless steel AISI 304
Seals
- Acrylonitrile butadiene rubber (NBR)
- Silicone rubber (MVQ)
- Operating temperature
-22 °F to +212 °F (-30 °C to +100 °C)
Protection class IP 69k
RoHS
Accessory
Socket Keys GN 119.2 (for Type AD7 / AD8)
Socket Keys GN 1151 (for Type AZ13)
Protective Caps GN 120
Finger Grip Opening Handles GN 120.1
On request
- Cam latches with other hook distance A
- Hook with other pivoting radius R
