GN 81700 Indexing Plungers Steel / Stainless Steel, with Special Tip

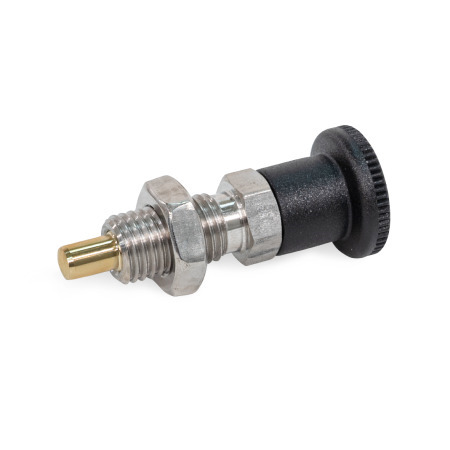

Indexing Plungers GN 81700: Steel / Stainless Steel, with Special Tip

Type: BK - Non lock-out, with lock nut
Plunger pin type: MA - Rounded tip, brass
Material: NI - Stainless steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

List of Indexing Plunger Types Load Rating Information ISO Fundamental Tolerances Plastic Characteristics Stainless Steel Characteristics

Product description

Indexing plungers GN 81700 lock height adjustments or swivel arms on devices, machines, and vehicles, for example.

The plunger pin types KA and MA have rounded tips of plastic or brass that reduce wear on the opposing surface and prevent marks or scratches. The conical plunger pin SB facilitates positioning in a corresponding receiving bore.

The spherical tip of plunger pin type SC passes over low edges or grooves, facilitating proper latching and preventing damage. Due to the small chamfer, plunger pin type SD is particularly suited for shallow detent bores, e.g. in sheet metal parts.

Indexing plungers with plunger pin types SE or SF can be fitted with application-specific attachments using the external or internal thread and used, for example, to actuate linkages or cable pulls.

Regardless of the selected plunger pin type, indexing plungers GN 81700 are available with or without rest position. Indexing plungers with a rest position are used when the locking pin should not protrude at times.

Specification

Guide

SteelST, blackened finish
Stainless steelNI AISI 303

Plunger pin

Steel, blackened finish for ST
Tip hardened for types SB / SC / SD
Stainless steel AISI 303, chemically nickel plated for NI
Coating for type KA
Plastic, polyphtalamide (PPA)
- Glass fiber reinforced
- Chemically bonded to the plunger pin
- White
Brass for type MA

Knob
Plastic, polyamide (PA)
Black, matte finish

Spring
Stainless steel AISI 301

Hex nut ISO 8675

Steel, blackened finish for ST
Stainless steel for NI

RoHS

Accessory

DIN 172 Press-Fit Drill Bushings (with Flange)
DIN 179 Press-Fit Drill Bushings (without Flange)
GN 609.5 Spacer Bushings
ISO 8675 Thin Hex Nuts
DIN 7979 Dowel Pins (with Internal Thread)
GN 909 Thin Hex Nuts
GN 909.5 Thin Hex Nuts
GN 412.2 Locating Bushings (with Collar)
GN 412.4 Locating Bushings (with Collar)
GN 412.3 Locating Bushings with Tapered Flange (Steel)
GN 412.5 Locating Bushings with Tapered Flange
GN 412.1 Mounting Blocks
GN 612.1 Mounting Blocks

GN 81700 Steel / Stainless Steel Indexing Plungers, with Special Tip sketch

Hide technical drawing

Part Options / Table

Type

B	Non lock-out, without lock nut
BK	Non lock-out, with lock nut
C	Lock-out, without lock nut
CK	Lock-out, with lock nut

Plunger pin type

KA	Rounded tip, plastic-coated
MA	Rounded tip, brass
SB	Conical tip
SC	Spherical tip
SD	Flat tip
SE	With external thread
SF	With internal thread

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-KA-ST	81700-5-8-BK-KA-ST	81700-5-8-C-KA-ST	81700-5-8-CK-KA-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-KA-NI	81700-5-8-BK-KA-NI	81700-5-8-C-KA-NI	81700-5-8-CK-KA-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-KA-ST	81700-6-9-BK-KA-ST	81700-6-9-C-KA-ST	81700-6-9-CK-KA-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-KA-NI	81700-6-9-BK-KA-NI	81700-6-9-C-KA-NI	81700-6-9-CK-KA-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-KA-ST	81700-8-12-BK-KA-ST	81700-8-12-C-KA-ST	81700-8-12-CK-KA-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-KA-NI	81700-8-12-BK-KA-NI	81700-8-12-C-KA-NI	81700-8-12-CK-KA-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-KA-ST	81700-10-12-BK-KA-ST	81700-10-12-C-KA-ST	81700-10-12-CK-KA-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-KA-NI	81700-10-12-BK-KA-NI	81700-10-12-C-KA-NI	81700-10-12-CK-KA-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-MA-ST	81700-5-8-BK-MA-ST	81700-5-8-C-MA-ST	81700-5-8-CK-MA-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-MA-NI	81700-5-8-BK-MA-NI	81700-5-8-C-MA-NI	81700-5-8-CK-MA-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-MA-ST	81700-6-9-BK-MA-ST	81700-6-9-C-MA-ST	81700-6-9-CK-MA-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-MA-NI	81700-6-9-BK-MA-NI	81700-6-9-C-MA-NI	81700-6-9-CK-MA-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-MA-ST	81700-8-12-BK-MA-ST	81700-8-12-C-MA-ST	81700-8-12-CK-MA-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-MA-NI	81700-8-12-BK-MA-NI	81700-8-12-C-MA-NI	81700-8-12-CK-MA-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-MA-ST	81700-10-12-BK-MA-ST	81700-10-12-C-MA-ST	81700-10-12-CK-MA-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-MA-NI	81700-10-12-BK-MA-NI	81700-10-12-C-MA-NI	81700-10-12-CK-MA-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-SB-ST	81700-5-8-BK-SB-ST	81700-5-8-C-SB-ST	81700-5-8-CK-SB-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-SB-NI	81700-5-8-BK-SB-NI	81700-5-8-C-SB-NI	81700-5-8-CK-SB-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-SB-ST	81700-6-9-BK-SB-ST	81700-6-9-C-SB-ST	81700-6-9-CK-SB-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-SB-NI	81700-6-9-BK-SB-NI	81700-6-9-C-SB-NI	81700-6-9-CK-SB-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-SB-ST	81700-8-12-BK-SB-ST	81700-8-12-C-SB-ST	81700-8-12-CK-SB-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-SB-NI	81700-8-12-BK-SB-NI	81700-8-12-C-SB-NI	81700-8-12-CK-SB-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-SB-ST	81700-10-12-BK-SB-ST	81700-10-12-C-SB-ST	81700-10-12-CK-SB-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-SB-NI	81700-10-12-BK-SB-NI	81700-10-12-C-SB-NI	81700-10-12-CK-SB-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-SC-ST	81700-5-8-BK-SC-ST	81700-5-8-C-SC-ST	81700-5-8-CK-SC-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-SC-NI	81700-5-8-BK-SC-NI	81700-5-8-C-SC-NI	81700-5-8-CK-SC-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-SC-ST	81700-6-9-BK-SC-ST	81700-6-9-C-SC-ST	81700-6-9-CK-SC-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-SC-NI	81700-6-9-BK-SC-NI	81700-6-9-C-SC-NI	81700-6-9-CK-SC-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-SC-ST	81700-8-12-BK-SC-ST	81700-8-12-C-SC-ST	81700-8-12-CK-SC-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-SC-NI	81700-8-12-BK-SC-NI	81700-8-12-C-SC-NI	81700-8-12-CK-SC-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-SC-ST	81700-10-12-BK-SC-ST	81700-10-12-C-SC-ST	81700-10-12-CK-SC-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-SC-NI	81700-10-12-BK-SC-NI	81700-10-12-C-SC-NI	81700-10-12-CK-SC-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-SD-ST	81700-5-8-BK-SD-ST	81700-5-8-C-SD-ST	81700-5-8-CK-SD-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-SD-NI	81700-5-8-BK-SD-NI	81700-5-8-C-SD-NI	81700-5-8-CK-SD-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	-	0.63	1.57	0.71	0.24	-	0.47	-	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-SD-ST	81700-6-9-BK-SD-ST	81700-6-9-C-SD-ST	81700-6-9-CK-SD-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-SD-NI	81700-6-9-BK-SD-NI	81700-6-9-C-SD-NI	81700-6-9-CK-SD-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	-	0.79	1.89	0.87	0.24	-	0.55	-	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-SD-ST	81700-8-12-BK-SD-ST	81700-8-12-C-SD-ST	81700-8-12-CK-SD-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-SD-NI	81700-8-12-BK-SD-NI	81700-8-12-C-SD-NI	81700-8-12-CK-SD-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-SD-ST	81700-10-12-BK-SD-ST	81700-10-12-C-SD-ST	81700-10-12-CK-SD-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-SD-NI	81700-10-12-BK-SD-NI	81700-10-12-C-SD-NI	81700-10-12-CK-SD-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	-	0.94	2.28	1.02	0.31	-	0.67	-	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-SE-ST	81700-5-8-BK-SE-ST	81700-5-8-C-SE-ST	81700-5-8-CK-SE-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	M 3	-	0.63	1.57	0.71	0.24	0.18	0.47	0.16	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-SE-NI	81700-5-8-BK-SE-NI	81700-5-8-C-SE-NI	81700-5-8-CK-SE-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	M 3	-	0.63	1.57	0.71	0.24	0.18	0.47	0.16	-	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-SE-ST	81700-6-9-BK-SE-ST	81700-6-9-C-SE-ST	81700-6-9-CK-SE-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	M 4	-	0.79	1.89	0.87	0.24	0.24	0.55	0.20	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-SE-NI	81700-6-9-BK-SE-NI	81700-6-9-C-SE-NI	81700-6-9-CK-SE-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	M 4	-	0.79	1.89	0.87	0.24	0.24	0.55	0.20	-	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-SE-ST	81700-8-12-BK-SE-ST	81700-8-12-C-SE-ST	81700-8-12-CK-SE-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	M 5	-	0.94	2.28	1.02	0.31	0.30	0.67	0.28	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-SE-NI	81700-8-12-BK-SE-NI	81700-8-12-C-SE-NI	81700-8-12-CK-SE-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	M 5	-	0.94	2.28	1.02	0.31	0.30	0.67	0.28	-	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-SE-ST	81700-10-12-BK-SE-ST	81700-10-12-C-SE-ST	81700-10-12-CK-SE-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	M 6	-	0.94	2.28	1.02	0.31	0.35	0.67	0.31	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-SE-NI	81700-10-12-BK-SE-NI	81700-10-12-C-SE-NI	81700-10-12-CK-SE-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	M 6	-	0.94	2.28	1.02	0.31	0.35	0.67	0.31	-	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

81700-5-8-B-SF-ST	81700-5-8-BK-SF-ST	81700-5-8-C-SF-ST	81700-5-8-CK-SF-ST	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	M 3	0.63	1.57	0.71	0.24	-	0.47	0.16	0.24	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-5-8-B-SF-NI	81700-5-8-BK-SF-NI	81700-5-8-C-SF-NI	81700-5-8-CK-SF-NI	0.197 -0.008 / -0.020 / H7	0.31	M 10 x 1	0.75	-	M 3	0.63	1.57	0.71	0.24	-	0.47	0.16	0.24	1.12 lbf (5 N)	4.05 lbf (18 N)
81700-6-9-B-SF-ST	81700-6-9-BK-SF-ST	81700-6-9-C-SF-ST	81700-6-9-CK-SF-ST	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	M 4	0.79	1.89	0.87	0.24	-	0.55	0.20	0.31	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-6-9-B-SF-NI	81700-6-9-BK-SF-NI	81700-6-9-C-SF-NI	81700-6-9-CK-SF-NI	0.236 -0.008 / -0.020 / H7	0.35	M 12 x 1.5	0.91	-	M 4	0.79	1.89	0.87	0.24	-	0.55	0.20	0.31	1.35 lbf (6 N)	5.62 lbf (25 N)
81700-8-12-B-SF-ST	81700-8-12-BK-SF-ST	81700-8-12-C-SF-ST	81700-8-12-CK-SF-ST	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	M 5	0.94	2.28	1.02	0.31	-	0.67	0.28	0.39	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-8-12-B-SF-NI	81700-8-12-BK-SF-NI	81700-8-12-C-SF-NI	81700-8-12-CK-SF-NI	0.315 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	M 5	0.94	2.28	1.02	0.31	-	0.67	0.28	0.39	1.91 lbf (8.5 N)	6.29 lbf (28 N)
81700-10-12-B-SF-ST	81700-10-12-BK-SF-ST	81700-10-12-C-SF-ST	81700-10-12-CK-SF-ST	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	M 6	0.94	2.28	1.02	0.31	-	0.67	0.31	0.47	2.14 lbf (9.5 N)	8.54 lbf (38 N)
81700-10-12-B-SF-NI	81700-10-12-BK-SF-NI	81700-10-12-C-SF-NI	81700-10-12-CK-SF-NI	0.394 -0.008 / -0.020 / H7	0.47	M 16 x 1.5	1.10	-	M 6	0.94	2.28	1.02	0.31	-	0.67	0.31	0.47	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Show / Hide columns

Metric

d₁ Plunger -0.008 / -0.020 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	A/F₁	A/F₂	t min.	Spring load ≈ Initial	End

0.197	0.31	M 10 x 1	0.75	M 3	M 3	0.63	1.57	0.71	0.24	0.18	0.47	0.16	0.24	1.12 lbf (5 N)	4.05 lbf (18 N)
0.236	0.35	M 12 x 1.5	0.91	M 4	M 4	0.79	1.89	0.87	0.24	0.24	0.55	0.20	0.31	1.35 lbf (6 N)	5.62 lbf (25 N)
0.315	0.47	M 16 x 1.5	1.10	M 5	M 5	0.94	2.28	1.02	0.31	0.30	0.67	0.28	0.39	1.91 lbf (8.5 N)	6.29 lbf (28 N)
0.394	0.47	M 16 x 1.5	1.10	M 6	M 6	0.94	2.28	1.02	0.31	0.35	0.67	0.31	0.47	2.14 lbf (9.5 N)	8.54 lbf (38 N)

Build & Price

Application Examples

Selected Part

Part Number

Total (net)

Mex$738.60

Available within 2 weeks

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$738.60
50	99	Mex$677.05
100	249	Mex$615.50
≥ 250		Mex$553.95

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.041 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
