Indexing Plungers GN 817

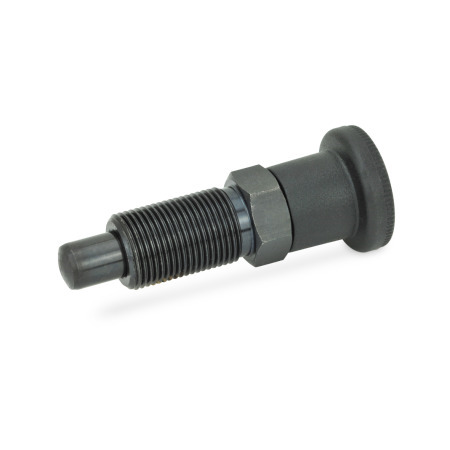

Type: B - Non lock-out, without lock nut

Standard Sheet GN 817 Print This Page List of Indexing Plunger Types Load Rating Information ISO Fundamental Tolerances Plastic Characteristics Metric ISO Threads DIN 13 Metric ISO Fine Threads DIN 13

Product description

Indexing plungers GN 817 with lock-out (type C / CK) are used for applications where the plunger pin needs to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in the retracted position.

This indexing plunger has the unique feature of the pull knob partially enclosing the top of the plunger body, allowing less debris to enter into the mechanism.

Type G and GK with threaded stem are for applications where a special knob or attachment is required, or for such cases where the spindle is linked directly to an operating mechanism.

Specification

Guide
Steel
Blackened finish

Plunger pin
Steel

Blackened finish
Tip hardened

Knob
Plastic, Polyamide (PA)

Black, matte finish
Not removable

Lock nut
Inch size

ANSI/ASME B18.2.2
Steel, blackened finish
Metric size
DIN 439 B / ISO 8675
Steel, blackened finish

RoHS

Accessory

Thin Hex Nuts GN 909 (Steel)
Locating Bushings GN 412.2
Locating Bushings with Tapered Flange GN 412.3 (Steel)

GN 817 Steel Indexing Plungers, Lock-Out and Non Lock-Out, with Multiple Pin Lengths sketch

Hide technical drawing

Part Options / Table

Type

B	Non lock-out, without lock nut
BK	Non lock-out, with lock nut
C	Lock-out, without lock nut
CK	Lock-out, with lock nut
G	With threaded stem, without lock nut
GK	With threaded stem, with lock nut

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁ Pin -0.001/-0.002 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	l₆	A/F	Spring load ≈ Initial	End

0.157	0.16	5/16 x 18	0.63	M 3	0.28	0.55	1.38	0.63	0.20	0.18	0.10	0.39	1.01 lbf (4.5 N)	2.70 lbf (12 N)
0.157	0.24	5/16 x 18	0.63	M 3	0.28	0.55	1.38	0.63	0.20	0.18	0.10	0.39	0.90 lbf (4 N)	2.81 lbf (12.5 N)
0.197	0.20	3/8 x 16	0.75	M 4	0.31	0.63	1.57	0.71	0.24	0.22	0.12	0.47	1.12 lbf (5 N)	3.37 lbf (15 N)
0.197	0.31	3/8 x 16	0.75	M 4	0.31	0.63	1.57	0.71	0.24	0.22	0.12	0.47	1.12 lbf (5 N)	4.05 lbf (18 N)
0.236	0.24	1/2 x 13	0.91	M 5	0.35	0.79	1.89	0.87	0.24	0.28	0.14	0.55	1.46 lbf (6.5 N)	4.27 lbf (19 N)
0.236	0.35	1/2 x 13	0.91	M 5	0.35	0.79	1.89	0.87	0.24	0.28	0.14	0.55	1.35 lbf (6 N)	5.62 lbf (25 N)
0.315	0.31	5/8 x 11	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	1.91 lbf (8.5 N)	5.85 lbf (26 N)
0.315	0.47	5/8 x 11	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	1.91 lbf (8.5 N)	6.29 lbf (28 N)
0.394	0.47	5/8 x 11	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	2.14 lbf (9.5 N)	8.54 lbf (38 N)
0.472	0.59	3/4 x 16	1.30	M 6	0.47	1.12	2.81	1.30	0.39	0.33	0.16	0.87	2.59 lbf (11.5 N)	8.99 lbf (40 N)
0.630	0.79	1 x 8	1.30	M 8	0.59	1.12	3.09	1.50	0.47	0.45	0.20	1.06	2.92 lbf (13 N)	12.14 lbf (54 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ Pin -0.001/-0.002 Bore H7	l₁	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	l₆	A/F	Spring load ≈ Initial	End

0.157	0.16	M 8 x 1	0.63	M 3	0.28	0.55	1.38	0.63	0.20	0.18	0.10	0.39	1.01 lbf (4.5 N)	2.70 lbf (12 N)
0.157	0.24	M 8 x 1	0.63	M 3	0.28	0.55	1.38	0.63	0.20	0.18	0.10	0.39	0.90 lbf (4 N)	2.81 lbf (12.5 N)
0.197	0.20	M 10 x 1	0.75	M 4	0.31	0.63	1.57	0.71	0.24	0.22	0.12	0.47	1.12 lbf (5 N)	3.37 lbf (15 N)
0.197	0.31	M 10 x 1	0.75	M 4	0.31	0.63	1.57	0.71	0.24	0.22	0.12	0.47	1.12 lbf (5 N)	4.05 lbf (18 N)
0.236	0.24	M 12 x 1.5	0.91	M 5	0.35	0.79	1.89	0.87	0.24	0.28	0.14	0.55	1.46 lbf (6.5 N)	4.27 lbf (19 N)
0.236	0.35	M 12 x 1.5	0.91	M 5	0.35	0.79	1.89	0.87	0.24	0.28	0.14	0.55	1.35 lbf (6 N)	5.62 lbf (25 N)
0.315	0.31	M 16 x 1.5	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	1.91 lbf (8.5 N)	5.85 lbf (26 N)
0.315	0.47	M 16 x 1.5	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	1.91 lbf (8.5 N)	6.29 lbf (28 N)
0.394	0.47	M 16 x 1.5	1.10	M 6	0.39	0.94	2.28	1.02	0.31	0.33	0.16	0.67	2.14 lbf (9.5 N)	8.54 lbf (38 N)
0.472	0.59	M 20 x 1.5	1.30	M 6	0.47	1.12	2.81	1.30	0.39	0.33	0.16	0.87	2.59 lbf (11.5 N)	8.99 lbf (40 N)
0.630	0.79	M 24 x 2	1.30	M 8	0.59	1.12	3.09	1.50	0.47	0.45	0.20	1.06	2.92 lbf (13 N)	12.14 lbf (54 N)
