GN 738.1 Threaded Plugs Aluminum, Magnet Material AINiCo, Resistant up to 356 °F, Black Anodized FInish

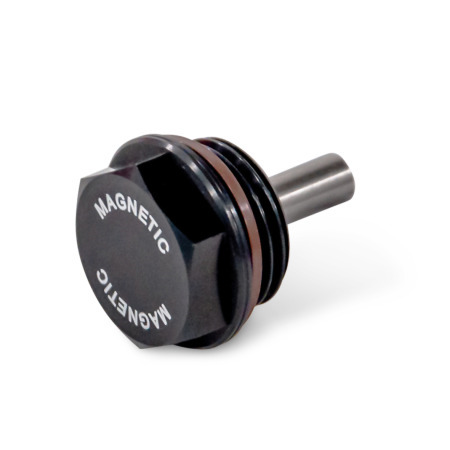

Threaded Plugs GN 738.1: Aluminum, Magnet Material AINiCo, Resistant up to 356 °F, Black Anodized FInish

Magnet Characteristics Plastic Characteristics

Product description

With the permanent magnet used, threaded plugs GN 738.1 attract iron particles that float in the fluid.

To prevent breakage and demagnetization, the round magnets are supplied with a plastic spacer and protection sleeve, which has to be removed prior to installing the threaded plugs.

The seal is embedded in a radial recess, and thus cannot be lost or squeezed out during tightening.

The outer diameter d₁ of threaded plugs is matched to screw-in holes for pipe fittings according to DIN 3852.

Specification

Plug
Aluminum
Anodized finish, blackES

Magnet
AlNiCo
Aluminum, nickel, cobalt

Seal
Fluorine rubber (FKM)

Operating temperature up to 356 °F (180 °C)
Brown

RoHS

GN 738.1 Aluminum Threaded Plugs, Magnet Material AINiCo, Resistant up to 356 °F, Black Anodized Finish sketch

Hide technical drawing

Part Options / Table

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂ Pipe thread	Fine thread	d₃	e ≈	l₁	l₂	l₃	s

738.1-19-M14X1.5-ES	0.75	-	M 14 x 1.5	0.24	0.68	0.31	0.91	1.20	0.59
738.1-19-G1/4-ES	0.75	G 1/4	-	0.24	0.68	0.31	0.91	1.20	0.59
738.1-22-M16X1.5-ES	0.87	-	M 16 x 1.5	0.24	0.82	0.31	0.91	1.20	0.71
738.1-22-G3/8-ES	0.87	G 3/8	-	0.24	0.82	0.31	0.91	1.20	0.71
738.1-26-M20X1.5-ES	1.02	-	M 20 x 1.5	0.24	0.96	0.33	0.93	1.22	0.83
738.1-26-G1/2-ES	1.02	G 1/2	-	0.24	0.96	0.33	0.93	1.22	0.83
738.1-32-G3/4-ES	1.26	G 3/4	-	0.24	1.23	0.35	0.94	1.26	1.06
738.1-32-M26X1.5-ES	1.26	-	M 26 x 1.5	0.24	1.23	0.35	0.94	1.26	1.06
738.1-32-M27X1.5-ES	1.26	-	M 27 x 1.5	0.24	1.23	0.35	0.94	1.26	1.06
738.1-40-M33X1.5-ES	1.57	-	M 33 x 1.5	0.24	1.46	0.43	1.02	1.36	1.26
738.1-40-G1-ES	1.57	G 1	-	0.24	1.46	0.43	1.02	1.36	1.26
738.1-50-G11/4-ES	1.97	G 1 1/4	-	0.24	1.86	0.47	1.06	1.46	1.61
738.1-50-M40X1.5-ES	1.97	-	M 40 x 1.5	0.24	1.86	0.47	1.06	1.46	1.61
738.1-50-M42X1.5-ES	1.97	-	M 42 x 1.5	0.24	1.86	0.47	1.06	1.46	1.61
738.1-50-M42X2-ES	1.97	-	M 42 x 2	0.24	1.86	0.47	1.06	1.46	1.61
738.1-60-G11/2-ES	2.36	G 1 1/2	-	0.24	2.27	0.51	1.10	1.46	1.97

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂ Pipe thread	Fine thread			d₃	e ≈	l₁	l₂	l₃	s

0.75	G 1/4	M 14 x 1.5	-	-	0.24	0.68	0.31	0.91	1.20	0.59
0.87	G 3/8	M 16 x 1.5	-	-	0.24	0.82	0.31	0.91	1.20	0.71
1.02	G 1/2	M 20 x 1.5	-	-	0.24	0.96	0.33	0.93	1.22	0.83
1.26	G 3/4	M 26 x 1.5	M 27 x 1.5	-	0.24	1.23	0.35	0.94	1.26	1.06
1.57	G 1	M 33 x 1.5	-	-	0.24	1.46	0.43	1.02	1.36	1.26
1.97	G 1 1/4	M 40 x 1.5	M 42 x 1.5	M 42 x 2	0.24	1.86	0.47	1.06	1.46	1.61
2.36	G 1 1/2	-	-	-	0.24	2.27	0.51	1.10	1.46	1.97

Build & Price

Selected Part

Part Number

Total (net)

Mex$372.00

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$372.00
50	99	Mex$341.00
100	249	Mex$310.00
≥ 250		Mex$279.00

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.039 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
