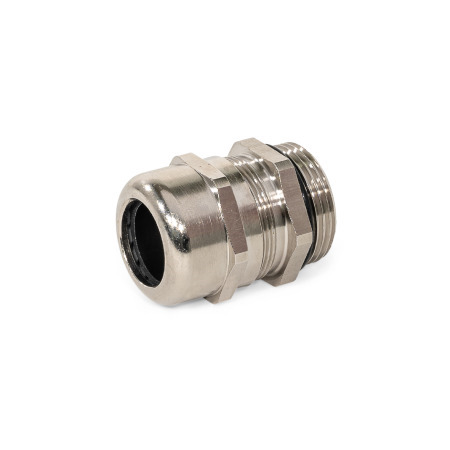

Cord Grips GN 62444

Material: MS - Brass

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Plastic Characteristics Stainless Steel Characteristics Cord Grips - Leaflet

Product description

Cord grips GN 62444 are used to feed cables or wires into enclosures, relieve strain, and seal them. Within the specified clamping range, the sealing and clamping effect increases with the cable diameter.

The cord grips can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.

The metal versions include an O-ring for sealing against the enclosure. The plastic version is sealed without an additional sealing ring.

Specification

Housing

BrassMS, nickel-plated
Stainless steelNI AISI 303
PlasticKLG, polyamide (PA)
Gray, RAL 7035

Seal insert
Chloroprene rubber (CR)

Clamping insert
Plastic, polyamide (PA)

O-ring for MS / NI
Acrylonitrile butadiene rubber (NBR)

Operating temperature
-40 °F to +212 °F (-40 °C to +100 °C)

Protection class IP 68

RoHS

GN 62444 Brass / Stainless Steel / Plastic Cord Grips, Metric Thread sketch

Hide technical drawing

Part Options / Table

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-M12X1.5-6-MS	M 12 x 1.5	-	0.24	3...6	0.87	-	-	0.24	-	0.55	-	-	0.55	-	-
62444-M16X1.5-8-MS	M 16 x 1.5	-	0.31	4...8	0.91	-	-	0.28	-	0.67	-	-	0.71	-	-
62444-M16X1.5-10-MS	M 16 x 1.5	-	0.39	5...10	1.12	-	-	0.28	-	0.79	-	-	0.79	-	-
62444-M20X1.5-12-MS	M 20 x 1.5	-	0.47	6...12	1.04	-	-	0.31	-	0.87	-	-	0.87	-	-
62444-M25X1.5-14-MS	M 25 x 1.5	-	0.55	10...14	1.09	-	-	0.31	-	0.94	-	-	1.06	-	-
62444-M25X1.5-17-MS	M 25 x 1.5	-	0.67	11...17	1.28	-	-	0.31	-	1.06	-	-	1.06	-	-
62444-M32X1.5-18-MS	M 32 x 1.5	-	0.71	13...18	1.30	-	-	0.35	-	1.18	-	-	1.34	-	-
62444-M32X1.5-21-MS	M 32 x 1.5	-	0.83	15...21	1.42	-	-	0.31	-	1.34	-	-	1.34	-	-
62444-M40X1.5-25-MS	M 40 x 1.5	-	0.98	18...25	1.50	-	-	0.35	-	1.57	-	-	1.69	-	-
62444-M40X1.5-28-MS	M 40 x 1.5	-	1.10	19...28	1.71	-	-	0.35	-	1.69	-	-	1.69	-	-
62444-M50X1.5-32-MS	M 50 x 1.5	-	1.26	22...32	1.89	-	-	0.35	-	1.97	-	-	2.17	-	-
62444-M50X1.5-38-MS	M 50 x 1.5	-	1.50	27...38	2.17	-	-	0.35	-	2.28	-	-	2.28	-	-
62444-M63X1.5-44-MS	M 63 x 1.5	-	1.73	34...44	2.09	-	-	0.55	-	2.52	-	-	2.68	-	-

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-M12X1.5-6-NI	M 12 x 1.5	-	0.24	3...6	-	0.87	-	0.24	-	-	0.55	-	-	0.55	-
62444-M16X1.5-8-NI	M 16 x 1.5	-	0.31	4...8	-	0.91	-	0.28	-	-	0.67	-	-	0.75	-
62444-M16X1.5-10-NI	M 16 x 1.5	-	0.39	5...10	-	1.12	-	0.28	-	-	0.87	-	-	0.87	-
62444-M20X1.5-12-NI	M 20 x 1.5	-	0.47	6...12	-	0.94	-	0.31	-	-	0.87	-	-	0.87	-
62444-M25X1.5-14-NI	M 25 x 1.5	-	0.55	10...14	-	1.08	-	0.31	-	-	0.94	-	-	1.06	-
62444-M25X1.5-17-NI	M 25 x 1.5	-	0.67	11...17	-	1.28	-	0.31	-	-	1.06	-	-	1.06	-
62444-M32X1.5-18-NI	M 32 x 1.5	-	0.71	13...18	-	1.28	-	0.35	-	-	1.18	-	-	1.42	-
62444-M32X1.5-21-NI	M 32 x 1.5	-	0.83	15...21	-	1.42	-	0.31	-	-	1.42	-	-	1.42	-
62444-M40X1.5-25-NI	M 40 x 1.5	-	0.98	18...25	-	1.60	-	0.35	-	-	1.61	-	-	1.81	-
62444-M40X1.5-28-NI	M 40 x 1.5	-	1.10	19...28	-	1.71	-	0.35	-	-	1.81	-	-	1.81	-
62444-M50X1.5-32-NI	M 50 x 1.5	-	1.26	22...32	-	1.85	-	0.35	-	-	1.97	-	-	2.17	-
62444-M50X1.5-38-NI	M 50 x 1.5	-	1.50	27...38	-	2.01	-	0.35	-	-	2.36	-	-	2.36	-
62444-M63X1.5-44-NI	M 63 x 1.5	-	1.73	34...44	-	2.05	-	0.55	-	-	2.56	-	-	2.76	-

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-M12X1.5-6-KLG	-	M 12 x 1.5	0.24	3...6	-	-	0.91	-	0.31	-	-	0.59	-	-	0.59
62444-M16X1.5-8-KLG	-	M 16 x 1.5	0.31	4...8	-	-	0.98	-	0.31	-	-	0.75	-	-	0.75
62444-M16X1.5-10-KLG	-	M 16 x 1.5	0.39	5...10	-	-	1.18	-	0.39	-	-	0.87	-	-	0.87
62444-M20X1.5-12-KLG	-	M 20 x 1.5	0.47	6...12	-	-	1.16	-	0.39	-	-	0.94	-	-	0.94
62444-M20X1.5-14-KLG	-	M 20 x 1.5	0.55	10...14	-	-	1.22	-	0.39	-	-	1.06	-	-	1.06
62444-M25X1.5-17-KLG	-	M 25 x 1.5	0.67	11...17	-	-	1.38	-	0.31	-	-	1.14	-	-	1.14
62444-M25X1.5-18-KLG	-	M 25 x 1.5	0.71	13...18	-	-	1.46	-	0.39	-	-	1.30	-	-	1.30
62444-M32X1.5-21-KLG	-	M 32 x 1.5	0.83	15...21	-	-	1.65	-	0.39	-	-	1.42	-	-	1.42
62444-M32X1.5-25-KLG	-	M 32 x 1.5	0.98	18...25	-	-	1.61	-	0.59	-	-	1.65	-	-	1.65
62444-M40X1.5-28-KLG	-	M 40 x 1.5	1.10	19...28	-	-	1.85	-	0.39	-	-	1.81	-	-	1.81
62444-M40X1.5-32-KLG	-	M 40 x 1.5	1.26	22...32	-	-	2.03	-	0.71	-	-	2.09	-	-	2.09
62444-M50X1.5-38-KLG	-	M 50 x 1.5	1.50	30...38	-	-	2.09	-	0.71	-	-	2.36	-	-	2.36
62444-M63X1.5-44-KLG	-	M 63 x 1.5	1.73	34...44	-	-	2.09	-	0.71	-	-	2.56	-	-	2.56

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

M 12 x 1.5	M 12 x 1.5	0.24	3...6	0.87	0.87	0.91	0.24	0.31	0.55	0.55	0.59	0.55	0.55	0.59
M 16 x 1.5	M 16 x 1.5	0.31	4...8	0.91	0.91	0.98	0.28	0.31	0.67	0.67	0.75	0.71	0.75	0.75
M 16 x 1.5	M 16 x 1.5	0.39	5...10	1.12	1.12	1.18	0.28	0.39	0.79	0.87	0.87	0.79	0.87	0.87
M 20 x 1.5	M 20 x 1.5	0.47	6...12	1.04	0.94	1.16	0.31	0.39	0.87	0.87	0.94	0.87	0.87	0.94
M 25 x 1.5	M 20 x 1.5	0.55	10...14	1.09	1.08	1.22	0.31	0.39	0.94	0.94	1.06	1.06	1.06	1.06
M 25 x 1.5	M 25 x 1.5	0.67	11...17	1.28	1.28	1.38	0.31	0.31	1.06	1.06	1.14	1.06	1.06	1.14
M 32 x 1.5	M 25 x 1.5	0.71	13...18	1.30	1.28	1.46	0.35	0.39	1.18	1.18	1.30	1.34	1.42	1.30
M 32 x 1.5	M 32 x 1.5	0.83	15...21	1.42	1.42	1.65	0.31	0.39	1.34	1.42	1.42	1.34	1.42	1.42
M 40 x 1.5	M 32 x 1.5	0.98	18...25	1.50	1.60	1.61	0.35	0.59	1.57	1.61	1.65	1.69	1.81	1.65
M 40 x 1.5	M 40 x 1.5	1.10	19...28	1.71	1.71	1.85	0.35	0.39	1.69	1.81	1.81	1.69	1.81	1.81
M 50 x 1.5	M 40 x 1.5	1.26	22...32	1.89	1.85	2.03	0.35	0.71	1.97	1.97	2.09	2.17	2.17	2.09
M 50 x 1.5	-	1.50	27...38	2.17	2.01	-	0.35	-	2.28	2.36	-	2.28	2.36	-
-	M 50 x 1.5	1.50	30...38	-	-	2.09	-	0.71	-	-	2.36	-	-	2.36
M 63 x 1.5	M 63 x 1.5	1.73	34...44	2.09	2.05	2.09	0.55	0.71	2.52	2.56	2.56	2.68	2.76	2.56

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

M 12 x 1.5	M 12 x 1.5	2	5.5	2	1	3	1
M 16 x 1.5	M 16 x 1.5	2.5	6.5	2.5	2.5	4	2.5
M 16 x 1.5	M 16 x 1.5	2.5	8	2.5	2.5	4	2.5
M 20 x 1.5	M 20 x 1.5	4	8	4	3.5	5.5	3.5
M 25 x 1.5	M 20 x 1.5	5.5	11	5.5	3.5	6	3.5
M 25 x 1.5	M 25 x 1.5	5.5	14	5.5	3.5	6	3.5
M 32 x 1.5	M 25 x 1.5	9	17	9	3.5	6	3.5
M 32 x 1.5	M 32 x 1.5	6	15	6	5	6	5
M 40 x 1.5	M 32 x 1.5	10	30	10	5	12	5
M 40 x 1.5	M 40 x 1.5	11	17	11	5	12	5
M 50 x 1.5	M 40 x 1.5	20	42	22	5	18	5
M 50 x 1.5	-	20	30	-	8	18	-
-	M 50 x 1.5	-	-	20	-	-	8
M 63 x 1.5	M 63 x 1.5	20	55	20	12	25	12

Build & Price

Selected Part

Part Number

Total (net)

Mex$21.60

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$21.60
100	249	Mex$19.80
250	499	Mex$18.00
≥ 500		Mex$16.20

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.006 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
