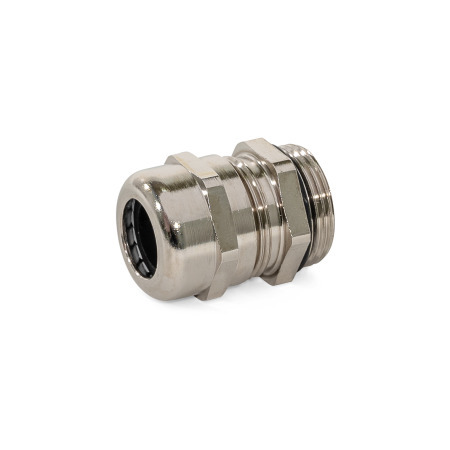

Cord Grips GN 62444

Material: MS - Brass

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Plastic Characteristics Stainless Steel Characteristics Cord Grips - Leaflet

Product description

Cord grips GN 62444 are used to feed cables or wires into enclosures, relieve strain, and seal them. Within the specified clamping range, the sealing and clamping effect increases with the cable diameter.

The cord grips can be screwed into an existing internal thread or mounted in a through hole using a mounting nut.

The metal versions include an O-ring for sealing against the enclosure. The plastic version is sealed without an additional sealing ring.

Specification

Housing

BrassMS, nickel-plated
Stainless steelNI AISI 303
PlasticKLG, polyamide (PA)
Gray, RAL 7035

Seal insert
Chloroprene rubber (CR)

Clamping insert
Plastic, polyamide (PA)

O-ring for MS / NI
Acrylonitrile butadiene rubber (NBR)

Operating temperature
-40 °F to +212 °F (-40 °C to +100 °C)

Protection class IP 68

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-PG7-6-MS	PG 7	-	0.24	3...6	0.87	-	-	0.24	-	0.55	-	-	0.55	-	-
62444-PG9-8-MS	PG 9	-	0.31	4...8	0.93	-	-	0.24	-	0.67	-	-	0.67	-	-
62444-PG11-10-MS	PG 11	-	0.39	5...10	1.02	-	-	0.24	-	0.79	-	-	0.79	-	-
62444-PG13.5-12-MS	PG 13.5	-	0.47	6...12	0.96	-	-	0.26	-	0.87	-	-	0.87	-	-
62444-PG16-14-MS	PG 16	-	0.55	10...14	1.10	-	-	0.26	-	0.94	-	-	0.94	-	-
62444-PG21-18-MS	PG 21	-	0.71	13...18	1.28	-	-	0.28	-	1.18	-	-	1.18	-	-
62444-PG29-25-MS	PG 29	-	0.98	18...25	1.52	-	-	0.31	-	1.57	-	-	1.57	-	-
62444-PG36-32-MS	PG 36	-	1.26	22...32	1.89	-	-	0.35	-	1.97	-	-	1.97	-	-
62444-PG48-44-MS	PG 48	-	1.73	34...44	2.09	-	-	0.55	-	2.52	-	-	2.52	-	-

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-PG7-6-NI	PG 7	-	0.24	3...6	-	0.87	-	0.24	-	-	0.55	-	-	0.55	-
62444-PG9-8-NI	PG 9	-	0.31	4...8	-	0.91	-	0.24	-	-	0.67	-	-	0.75	-
62444-PG11-10-NI	PG 11	-	0.39	5...10	-	1.00	-	0.24	-	-	0.87	-	-	0.87	-
62444-PG13.5-12-NI	PG 13.5	-	0.47	6...12	-	0.94	-	0.26	-	-	0.87	-	-	0.87	-
62444-PG16-14-NI	PG 16	-	0.55	10...14	-	1.08	-	0.26	-	-	0.94	-	-	0.94	-
62444-PG21-18-NI	PG 21	-	0.71	13...18	-	1.28	-	0.28	-	-	1.18	-	-	1.18	-
62444-PG29-25-NI	PG 29	-	0.98	18...25	-	1.52	-	0.31	-	-	1.61	-	-	1.61	-
62444-PG36-32-NI	PG 36	-	1.26	22...32	-	1.81	-	0.35	-	-	1.97	-	-	1.97	-
62444-PG48-44-NI	PG 48	-	1.73	34...44	-	1.95	-	0.55	-	-	2.56	-	-	2.56	-

Part Number	d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

62444-PG7-6-KLG	-	PG 7	0.24	3...6	-	-	0.87	-	0.31	-	-	0.59	-	-	0.59
62444-PG9-8-KLG	-	PG 9	0.31	4...8	-	-	1.04	-	0.31	-	-	0.75	-	-	0.75
62444-PG11-10-KLG	-	PG 11	0.39	5...10	-	-	1.14	-	0.31	-	-	0.87	-	-	0.87
62444-PG13.5-12-KLG	-	PG 13.5	0.47	6...12	-	-	1.14	-	0.39	-	-	0.94	-	-	0.94
62444-PG16-14-KLG	-	PG 16	0.55	10...14	-	-	1.22	-	0.39	-	-	1.06	-	-	1.06
62444-PG21-18-KLG	-	PG 21	0.71	13...18	-	-	1.46	-	0.43	-	-	1.30	-	-	1.30
62444-PG29-25-KLG	-	PG 29	0.98	18...25	-	-	1.61	-	0.43	-	-	1.65	-	-	1.65
62444-PG36-32-KLG	-	PG 36	1.26	22...32	-	-	2.03	-	0.51	-	-	2.09	-	-	2.09
62444-PG42-38-KLG	-	PG 42	1.50	30...38	-	-	2.11	-	0.51	-	-	2.36	-	-	2.36
62444-PG48-44-KLG	-	PG 48	1.73	34...44	-	-	2.11	-	0.55	-	-	2.56	-	-	2.56

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS / NI	KLG	A/F₂ MS / NI	KLG

PG 7	-	5	-	3	-
PG 9	-	6	-	4	-
PG 11	-	7	-	5	-
PG 13.5	-	8	-	5.5	-
PG 16	-	11	-	7	-
PG 21	-	17	-	10	-
PG 29	-	30	-	15	-
PG 36	-	42	-	20	-
PG 48	-	50	-	35	-

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS / NI	KLG	A/F₂ MS / NI	KLG

PG 7	-	5	-	3	-
PG 9	-	6	-	4	-
PG 11	-	7	-	5	-
PG 13.5	-	8	-	5.5	-
PG 16	-	11	-	7	-
PG 21	-	17	-	10	-
PG 29	-	30	-	15	-
PG 36	-	42	-	20	-
PG 48	-	50	-	35	-

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS / NI	KLG	A/F₂ MS / NI	KLG

-	PG 7	-	2	-	1
-	PG 9	-	2.5	-	1.5
-	PG 11	-	2.5	-	2
-	PG 13.5	-	4	-	3
-	PG 16	-	5.5	-	3.5
-	PG 21	-	5.5	-	3.5
-	PG 29	-	10	-	9.5
-	PG 36	-	16	-	11
-	PG 42	-	20	-	14
-	PG 48	-	20	-	14

d₁ MS / NI	KLG	d₂	Clamping range Ø Min...Max	h max. MS	NI	KLG	Length l MS / NI	KLG	A/F₁ MS	NI	KLG	A/F₂ MS	NI	KLG

PG 7	PG 7	0.24	3...6	0.87	0.87	0.87	0.24	0.31	0.55	0.55	0.59	0.55	0.55	0.59
PG 9	PG 9	0.31	4...8	0.93	0.91	1.04	0.24	0.31	0.67	0.67	0.75	0.67	0.75	0.75
PG 11	PG 11	0.39	5...10	1.02	1.00	1.14	0.24	0.31	0.79	0.87	0.87	0.79	0.87	0.87
PG 13.5	PG 13.5	0.47	6...12	0.96	0.94	1.14	0.26	0.39	0.87	0.87	0.94	0.87	0.87	0.94
PG 16	PG 16	0.55	10...14	1.10	1.08	1.22	0.26	0.39	0.94	0.94	1.06	0.94	0.94	1.06
PG 21	PG 21	0.71	13...18	1.28	1.28	1.46	0.28	0.43	1.18	1.18	1.30	1.18	1.18	1.30
PG 29	PG 29	0.98	18...25	1.52	1.52	1.61	0.31	0.43	1.57	1.61	1.65	1.57	1.61	1.65
PG 36	PG 36	1.26	22...32	1.89	1.81	2.03	0.35	0.51	1.97	1.97	2.09	1.97	1.97	2.09
-	PG 42	1.50	30...38	-	-	2.11	-	0.51	-	-	2.36	-	-	2.36
PG 48	PG 48	1.73	34...44	2.09	1.95	2.11	0.55	0.55	2.52	2.56	2.56	2.52	2.56	2.56

d₁ MS / NI	KLG	Recommended tightening torque in Nm A/F₁ MS / NI	KLG	A/F₂ MS / NI	KLG

PG 7	PG 7	5	2	3	1
PG 9	PG 9	6	2.5	4	1.5
PG 11	PG 11	7	2.5	5	2
PG 13.5	PG 13.5	8	4	5.5	3
PG 16	PG 16	11	5.5	7	3.5
PG 21	PG 21	17	5.5	10	3.5
PG 29	PG 29	30	10	15	9.5
PG 36	PG 36	42	16	20	11
-	PG 42	-	20	-	14
PG 48	PG 48	50	20	35	14
