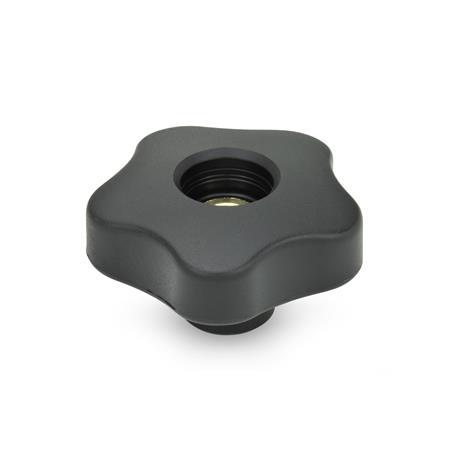

EN 5337.2 Five-Lobed Knobs Plastic, with Brass Tapped Through Insert

Five-Lobed Knobs EN 5337.2: Plastic, with Brass Tapped Through Insert
ELESA original design VCT.
Plastic Characteristics

Product description

The special type of technopolymer used and matte finish make these five-lobed knobs EN 5337.2 elegant and "soft" to touch. The operator obtains a strong clamping action without any discomfort due to its ergonomic design: five lobes, blended radius and well proportioned rim height assure a natural, safe and comfortable grip.

Resistant to solvents, oils, grease and other chemical agents.

Specification

Knob
Plastic, Polypropylene (PP)

  • Reinforced, shock resistant
  • Operating temperature
    32 °F to 194 °F (0 °C to +90 °C)
  • Black, matte finish

Insert
Brass

RoHS

EN 5337.2 Plastic Five-Lobed Knobs, with Brass Tapped Through Insert sketch
Hide technical drawing
EN 5337.2 Plastic Five-Lobed Knobs, with Brass Tapped Through Insert sketch

Part Options / Table

Type

DWithout cover cap (tapped through bore)
Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)
d1d3d5d6h1h2t1
1.261/4 x 20-0.590.390.910.390.47
1.575/16 x 18-0.670.511.060.470.71
1.973/8 x 16-0.750.591.260.550.79
2.483/8 x 161/2 x 130.870.751.460.631.02
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1d3d5d6h1h2t1
1.26M 5M 6M 80.590.390.910.390.47
1.57M 6M 8-0.670.511.060.470.71
1.57M 10--0.670.511.060.470.67
1.97M 8M 10M 120.750.591.260.550.79
2.48M 8M 10M 120.870.751.460.631.02
2.91M 12M 14-1.020.671.710.871.02
2.91M 16--1.020.671.710.871.22
3.31M 12M 16-1.100.871.730.830.98

Build & Price
Handle diameter d1
Thread d3

Inch

Metric

Type

Handle diameter d1
Thread d3

Inch

Metric

Type

Selected Part

Total (net)
Mex$64.35
Available within 2 weeks
Create Project List
Save as Favorites
Recommend a product

Please enter the code above.

Please note our quantity discounts (Mexican Pesos).
MinMaxPrice
19Mex$64.35
10249Mex$62.01
250499Mex$58.50
≥ 500Mex$52.65
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.028 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: +52(81)2721-4021

CAD Download

CAD Download Tutorial

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 6:00 PM Central Time: +52(81)2721-4021

Special Requests | Contact our sales team

EN 5337.2-32-M5-DEN 5337.2-32-M6-DEN 5337.2-32-M8-DEN 5337.2-40-M6-DEN 5337.2-40-M8-DEN 5337.2-40-M10-DEN 5337.2-50-M8-DEN 5337.2-50-M10-DEN 5337.2-50-M12-DEN 5337.2-63-M8-DEN 5337.2-63-M10-DEN 5337.2-63-M12-DEN 5337.2-74-M12-DEN 5337.2-74-M14-DEN 5337.2-74-M16-DEN 5337.2-84-M12-DEN 5337.2-84-M16-DEN 5337.2-1.26-1/4x20-DEN 5337.2-1.57-5/16x18-DEN 5337.2-1.97-3/8x16-DEN 5337.2-2.48-3/8x16-DEN 5337.2-2.48-1/2x13-D
