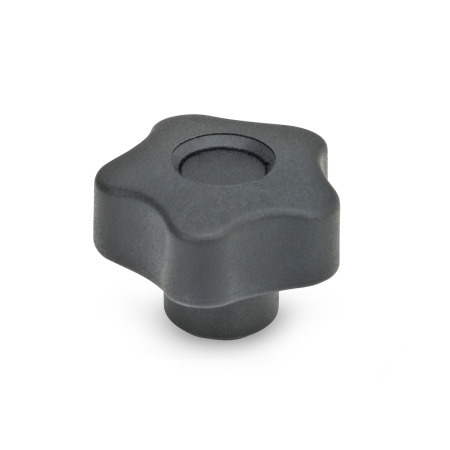

EN 5337.2 Five-Lobed Knobs Plastic, with Brass Tapped Insert, Self-Extinguishing

Five-Lobed Knobs EN 5337.2: Plastic, with Brass Tapped Insert, Self-Extinguishing

Original design
code: VCT.AE-VO

Plastic Characteristics

Product description

Five-lobed knobs EN 5337.2 Type SV are produced from a plastic material, which according to UL 94 V-O is classified as a self-extinguishing material.

This classification to UL 94 V-O (Underwriters Laboratories) determines the resistance of a plastic material to fire. This comprises a test on a piece of plastic material of a specific form and dimensions in a vertical position to be set afire, whereby the flame according to V-O must extinguish itself without burning droplets developing.

Specification

Knob
PlasticSV, Polyamide (PA)

Reinforced, shock resistant
Self-extinguishing
Operating temperature
-22 °F to +302 °F (-30 °C to +150 °C)
Black, matte finish

Tapped insert
Brass

Cover cap for d₁ = 32...50
Plastic, Polyamide (PA)
Black, RAL 9005, matte finish

RoHS

On request

Cover caps in other colors
Inch sizes

EN 5337.2 Plastic Five-Lobed Knobs, with Brass Tapped Insert, Self-Extinguishing sketch

Hide technical drawing

Part Options / Table

Type

E	With cover cap (tapped blind bore)

Part Number	d₁	d₂	d₅	d₆	h₁	h₂	t₁

5337.2-25-M5-E-SV	0.98	M 5	0.51	0.31	0.75	0.31	0.39
5337.2-32-M6-E-SV	1.26	M 6	0.59	0.39	0.91	0.39	0.47
5337.2-40-M8-E-SV	1.57	M 8	0.67	0.51	1.06	0.47	0.71
5337.2-50-M10-E-SV	1.97	M 10	0.75	0.59	1.26	0.55	0.79

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	d₅	d₆	h₁	h₂	t₁

0.98	M 5	0.51	0.31	0.75	0.31	0.39
1.26	M 6	0.59	0.39	0.91	0.39	0.47
1.57	M 8	0.67	0.51	1.06	0.47	0.71
1.97	M 10	0.75	0.59	1.26	0.55	0.79

Build & Price

Selected Part

Part Number

Total (net)

Mex$69.85

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	9	Mex$69.85
10	249	Mex$67.31
250	499	Mex$63.50
≥ 500		Mex$57.15

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.013 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
