DIN 9861 Cutting Punches Steel HSS

Product description

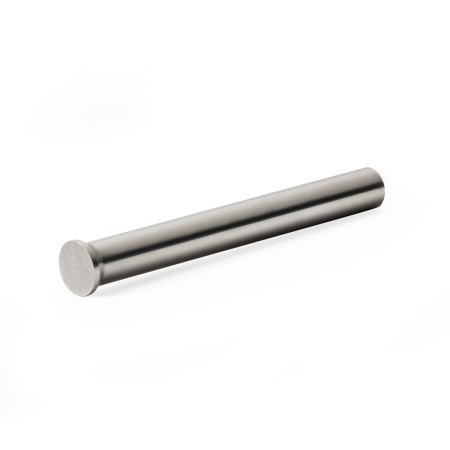

Cutting punches DIN 9861 are used, for example, in combination with cutting bushings DIN 9845 in punching tools. Depending on the application, however, they can also be used as positioning, guide, ejector or embossing pins and can be machined accordingly.

Cutting punches DIN 9861 are characterized by tight shape and position tolerances, a finely machined surface and high wear resistance.

Specification

SteelHSS

Shaft hardened (HRC 62 +2)
Head hardened (HRC 50 +5)

RoHS

Accessory

Cutting Bushings DIN 9845 (Type A, Type B)
Guide Bushings DIN 9845 (Type C)

On request

Other dimensions

DIN 9861 Steel HSS Cutting Punches sketch

Hide technical drawing

Part Options / Table

Type

D	With conical head

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁ h6	Length l +0.02	d₂ ±0.008	h +0.008

9861-2-71-D-HSS	0.08 h6	2.80 +0.02	0.118 ±0.008	0.054 +0.008
9861-2-80-D-HSS	0.08 h6	3.15 +0.02	0.118 ±0.008	0.054 +0.008
9861-3-71-D-HSS	0.12 h6	2.80 +0.02	0.177 ±0.008	0.071 +0.008
9861-3-80-D-HSS	0.12 h6	3.15 +0.02	0.177 ±0.008	0.071 +0.008
9861-4-71-D-HSS	0.16 h6	2.80 +0.02	0.217 ±0.008	0.071 +0.008
9861-4-80-D-HSS	0.16 h6	3.15 +0.02	0.217 ±0.008	0.071 +0.008
9861-5-71-D-HSS	0.20 h6	2.80 +0.02	0.256 ±0.008	0.071 +0.008
9861-5-80-D-HSS	0.20 h6	3.15 +0.02	0.256 ±0.008	0.071 +0.008
9861-6-71-D-HSS	0.24 h6	2.80 +0.02	0.315 ±0.008	0.127 +0.008
9861-6-80-D-HSS	0.24 h6	3.15 +0.02	0.315 ±0.008	0.127 +0.008
9861-8-71-D-HSS	0.31 h6	2.80 +0.02	0.394 ±0.008	0.107 +0.008
9861-8-80-D-HSS	0.31 h6	3.15 +0.02	0.394 ±0.008	0.107 +0.008
9861-10-71-D-HSS	0.39 h6	2.80 +0.02	0.472 ±0.008	0.107 +0.008
9861-10-80-D-HSS	0.39 h6	3.15 +0.02	0.472 ±0.008	0.107 +0.008
9861-12-71-D-HSS	0.47 h6	2.80 +0.02	0.551 ±0.008	0.107 +0.008
9861-12-80-D-HSS	0.47 h6	3.15 +0.02	0.551 ±0.008	0.107 +0.008
9861-16-71-D-HSS	0.63 h6	2.80 +0.02	0.709 ±0.008	0.127 +0.008
9861-16-80-D-HSS	0.63 h6	3.15 +0.02	0.709 ±0.008	0.127 +0.008

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ h6	Length l +0.02		d₂ ±0.008	h +0.008

0.08	2.80	3.15	0.118	0.054
0.12	2.80	3.15	0.177	0.071
0.16	2.80	3.15	0.217	0.071
0.20	2.80	3.15	0.256	0.071
0.24	2.80	3.15	0.315	0.127
0.31	2.80	3.15	0.394	0.107
0.39	2.80	3.15	0.472	0.107
0.47	2.80	3.15	0.551	0.107
0.63	2.80	3.15	0.709	0.127
