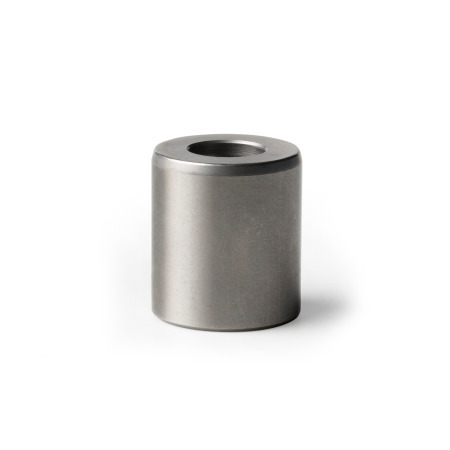

DIN 9845 Cutting Bushings Steel HSS

Type: A - Without flange

ISO Fundamental Tolerances

Product description

Cutting bushings DIN 9845 are used, for example, in combination with cutting punches DIN 9861 in punching tools.

When selecting the cutting bushing, it is necessary to consider the required cutting gap, which depends on the material to be punched and the material thickness. The diameter d₄ is larger than the cutting bore d₁ to enable reliable ejection of the punched part.

If necessary, cutting bushings can be machined to give them an application-specific geometry.

Specification

SteelHSS

Hardened and tempered (HRC 62 +2)
Tolerances and cutting edges ground

RoHS

Accessory

Cutting Punches DIN 9861
Guide Bushings DIN 9845 (Type C)

On request

Other bores d₁
Other lengths l₁

DIN 9845 Steel HSS Cutting Bushings sketch

Hide technical drawing

Part Options / Table

Type

A	Without flange
B	With flange

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number A - Without flange	Part Number B - With flange	d₁ H8	l₁	d₂ Type A n6	Type B k6	d₃	d₄	l₂	l₃


9845-2-20-A-HSS		0.08 H8	0.79	0.24 n6	0.24 k6	-	d₁+0.3	0.67	-
	9845-2-20-B-HSS	0.08 H8	0.79	0.24 n6	0.24 k6	0.31	d₁+0.3	0.67	0.63
9845-2.1-20-A-HSS		0.08 H8	0.79	0.28 n6	0.28 k6	-	d₁+0.5	0.67	-
	9845-2.1-20-B-HSS	0.08 H8	0.79	0.28 n6	0.28 k6	0.35	d₁+0.5	0.67	0.63
9845-3-20-A-HSS		0.12 H8	0.79	0.28 n6	0.28 k6	-	d₁+0.5	0.67	-
	9845-3-20-B-HSS	0.12 H8	0.79	0.28 n6	0.28 k6	0.35	d₁+0.5	0.67	0.63
9845-3.1-20-A-HSS		0.12 H8	0.79	0.31 n6	0.31 k6	-	d₁+0.5	0.67	-
	9845-3.1-20-B-HSS	0.12 H8	0.79	0.31 n6	0.31 k6	0.39	d₁+0.5	0.67	0.63
9845-4-20-A-HSS		0.16 H8	0.79	0.31 n6	0.31 k6	-	d₁+0.5	0.67	-
	9845-4-20-B-HSS	0.16 H8	0.79	0.31 n6	0.31 k6	0.39	d₁+0.5	0.67	0.63
9845-4.1-20-A-HSS		0.16 H8	0.79	0.39 n6	0.39 k6	-	d₁+0.5	0.63	-
	9845-4.1-20-B-HSS	0.16 H8	0.79	0.39 n6	0.39 k6	0.47	d₁+0.5	0.63	0.63
9845-5-20-A-HSS		0.20 H8	0.79	0.39 n6	0.39 k6	-	d₁+0.7	0.63	-
	9845-5-20-B-HSS	0.20 H8	0.79	0.39 n6	0.39 k6	0.47	d₁+0.7	0.63	0.63
9845-5.1-20-A-HSS		0.20 H8	0.79	0.47 n6	0.47 k6	-	d₁+0.7	0.63	-
	9845-5.1-20-B-HSS	0.20 H8	0.79	0.47 n6	0.47 k6	0.55	d₁+0.7	0.63	0.63
9845-6-20-A-HSS		0.24 H8	0.79	0.47 n6	0.47 k6	-	d₁+0.7	0.63	-
	9845-6-20-B-HSS	0.24 H8	0.79	0.47 n6	0.47 k6	0.55	d₁+0.7	0.63	0.63
9845-6.1-20-A-HSS		0.24 H8	0.79	0.59 n6	0.59 k6	-	d₁+0.7	0.63	-
	9845-6.1-20-B-HSS	0.24 H8	0.79	0.59 n6	0.59 k6	0.67	d₁+0.7	0.63	0.63
9845-8-20-A-HSS		0.31 H8	0.79	0.59 n6	0.59 k6	-	d₁+0.7	0.63	-
	9845-8-20-B-HSS	0.31 H8	0.79	0.59 n6	0.59 k6	0.67	d₁+0.7	0.63	0.63
9845-8.1-20-A-HSS		0.32 H8	0.79	0.71 n6	0.71 k6	-	d₁+1	0.63	-
	9845-8.1-20-B-HSS	0.32 H8	0.79	0.71 n6	0.71 k6	0.79	d₁+1	0.63	0.63
9845-10-20-A-HSS		0.39 H8	0.79	0.71 n6	0.71 k6	-	d₁+1	0.63	-
	9845-10-20-B-HSS	0.39 H8	0.79	0.71 n6	0.71 k6	0.79	d₁+1	0.63	0.63
9845-10.1-20-A-HSS		0.40 H8	0.79	0.87 n6	0.87 k6	-	d₁+1	0.59	-
	9845-10.1-20-B-HSS	0.40 H8	0.79	0.87 n6	0.87 k6	0.94	d₁+1	0.59	0.63
9845-12-20-A-HSS		0.47 H8	0.79	0.87 n6	0.87 k6	-	d₁+1	0.59	-
	9845-12-20-B-HSS	0.47 H8	0.79	0.87 n6	0.87 k6	0.94	d₁+1	0.59	0.63
9845-12.1-20-A-HSS		0.48 H8	0.79	1.02 n6	1.02 k6	-	d₁+1	0.59	-
	9845-12.1-20-B-HSS	0.48 H8	0.79	1.02 n6	1.02 k6	1.10	d₁+1	0.59	0.63

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ H8	l₁	d₂ Type A n6	Type B k6	d₃	d₄	l₂	l₃

0.08	0.79	0.24	0.24	0.31	d₁+0.3	0.67	0.63
0.08	0.79	0.28	0.28	0.35	d₁+0.5	0.67	0.63
0.12	0.79	0.28	0.28	0.35	d₁+0.5	0.67	0.63
0.12	0.79	0.31	0.31	0.39	d₁+0.5	0.67	0.63
0.16	0.79	0.31	0.31	0.39	d₁+0.5	0.67	0.63
0.16	0.79	0.39	0.39	0.47	d₁+0.5	0.63	0.63
0.20	0.79	0.39	0.39	0.47	d₁+0.7	0.63	0.63
0.20	0.79	0.47	0.47	0.55	d₁+0.7	0.63	0.63
0.24	0.79	0.47	0.47	0.55	d₁+0.7	0.63	0.63
0.24	0.79	0.59	0.59	0.67	d₁+0.7	0.63	0.63
0.31	0.79	0.59	0.59	0.67	d₁+0.7	0.63	0.63
0.32	0.79	0.71	0.71	0.79	d₁+1	0.63	0.63
0.39	0.79	0.71	0.71	0.79	d₁+1	0.63	0.63
0.40	0.79	0.87	0.87	0.94	d₁+1	0.59	0.63
0.47	0.79	0.87	0.87	0.94	d₁+1	0.59	0.63
0.48	0.79	1.02	1.02	1.10	d₁+1	0.59	0.63
