GN 62444.1 Thin Hex Nuts Brass / Stainless Steel / Plastic, Metric Thread

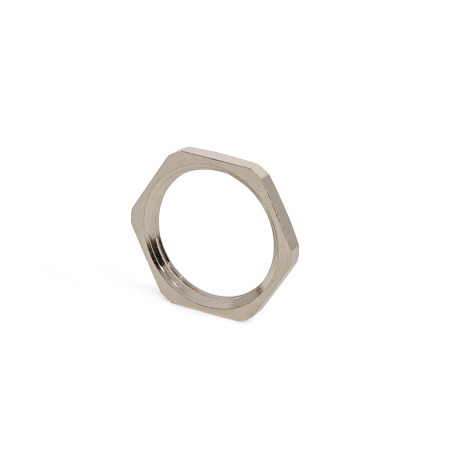

Thin Hex Nuts GN 62444.1: Brass / Stainless Steel / Plastic, Metric Thread

Material: MS - Brass

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Plastic Characteristics Stainless Steel Characteristics Cord Grips - Leaflet

Product description

Thin hex nuts GN 62444.1 are used for fastening cord grips, reducers or threaded plugs in through holes in enclosures.

Specification

BrassMS
Nickel-plated

Stainless steelNI AISI 303

PlasticKLG, polyamide (PA)

Glass fiber reinforced
Operating temperature
-40 °F to +212 °F (-40 °C to +100 °C)
Gray, RAL 7035

RoHS

GN 62444.1 Brass / Stainless Steel / Plastic Thin Hex Nuts, Metric Thread sketch

Hide technical drawing

Part Options / Table

Part Number	d	b MS	NI	KLG	e ≈ MS	NI	KLG	s MS	NI	KLG

62444.1-M12X1.5-MS	M 12 x 1.5	0.11	-	-	0.64	-	-	0.59	-	-
62444.1-M16X1.5-MS	M 16 x 1.5	0.11	-	-	0.82	-	-	0.75	-	-
62444.1-M20X1.5-MS	M 20 x 1.5	0.12	-	-	1.03	-	-	0.94	-	-
62444.1-M25X1.5-MS	M 25 x 1.5	0.14	-	-	1.25	-	-	1.14	-	-
62444.1-M32X1.5-MS	M 32 x 1.5	0.16	-	-	1.56	-	-	1.42	-	-
62444.1-M40X1.5-MS	M 40 x 1.5	0.20	-	-	1.98	-	-	1.81	-	-
62444.1-M50X1.5-MS	M 50 x 1.5	0.20	-	-	2.30	-	-	2.24	-	-
62444.1-M63X1.5-MS	M 63 x 1.5	0.24	-	-	3.02	-	-	2.76	-	-

Part Number	d	b MS	NI	KLG	e ≈ MS	NI	KLG	s MS	NI	KLG

62444.1-M12X1.5-NI	M 12 x 1.5	-	0.11	-	-	0.64	-	-	0.59	-
62444.1-M16X1.5-NI	M 16 x 1.5	-	0.12	-	-	0.82	-	-	0.75	-
62444.1-M20X1.5-NI	M 20 x 1.5	-	0.14	-	-	1.05	-	-	0.94	-
62444.1-M25X1.5-NI	M 25 x 1.5	-	0.16	-	-	1.29	-	-	1.18	-
62444.1-M32X1.5-NI	M 32 x 1.5	-	0.20	-	-	1.52	-	-	1.42	-
62444.1-M40X1.5-NI	M 40 x 1.5	-	0.20	-	-	1.95	-	-	1.81	-
62444.1-M50X1.5-NI	M 50 x 1.5	-	0.20	-	-	2.34	-	-	2.17	-
62444.1-M63X1.5-NI	M 63 x 1.5	-	0.24	-	-	3.02	-	-	2.76	-

Part Number	d	b MS	NI	KLG	e ≈ MS	NI	KLG	s MS	NI	KLG

62444.1-M12X1.5-KLG	M 12 x 1.5	-	-	0.20	-	-	0.76	-	-	0.71
62444.1-M16X1.5-KLG	M 16 x 1.5	-	-	0.20	-	-	0.95	-	-	0.87
62444.1-M20X1.5-KLG	M 20 x 1.5	-	-	0.24	-	-	1.13	-	-	1.02
62444.1-M25X1.5-KLG	M 25 x 1.5	-	-	0.24	-	-	1.38	-	-	1.26
62444.1-M32X1.5-KLG	M 32 x 1.5	-	-	0.28	-	-	1.81	-	-	1.61
62444.1-M40X1.5-KLG	M 40 x 1.5	-	-	0.28	-	-	2.19	-	-	1.97
62444.1-M50X1.5-KLG	M 50 x 1.5	-	-	0.31	-	-	2.59	-	-	2.36
62444.1-M63X1.5-KLG	M 63 x 1.5	-	-	0.31	-	-	3.24	-	-	2.95

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d	b MS	NI	KLG	e ≈ MS	NI	KLG	s MS	NI	KLG

M 12 x 1.5	0.11	0.11	0.20	0.64	0.64	0.76	0.59	0.59	0.71
M 16 x 1.5	0.11	0.12	0.20	0.82	0.82	0.95	0.75	0.75	0.87
M 20 x 1.5	0.12	0.14	0.24	1.03	1.05	1.13	0.94	0.94	1.02
M 25 x 1.5	0.14	0.16	0.24	1.25	1.29	1.38	1.14	1.18	1.26
M 32 x 1.5	0.16	0.20	0.28	1.56	1.52	1.81	1.42	1.42	1.61
M 40 x 1.5	0.20	0.20	0.28	1.98	1.95	2.19	1.81	1.81	1.97
M 50 x 1.5	0.20	0.20	0.31	2.30	2.34	2.59	2.24	2.17	2.36
M 63 x 1.5	0.24	0.24	0.31	3.02	3.02	3.24	2.76	2.76	2.95

Build & Price

Selected Part

Part Number

Total (net)

Mex$5.40

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$5.40
100	249	Mex$4.95
250	499	Mex$4.50
≥ 500		Mex$4.05

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.002 lbs
