Rapid Release Pins GN 214.3

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

List of Lock Pin Types Load Rating Information Plastic Characteristics Stainless Steel Characteristics

Product description

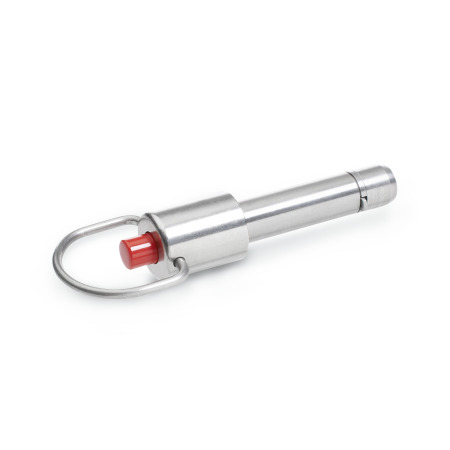

Rapid release pins GN 214.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of stainless steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swiveling lifting ring is ideal for the use in confined spaces.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).

Specification

Shank pin
Stainless steel AISI 303

Securing pawls
Stainless steel sheet metal AISI 304

Pull ring
Stainless steel AISI 301

Spring
Stainless steel AISI 301

Push button / Push rod
Plastic, Polyacetal (POM)

Push button: red
Operating temperature up to 176 °F (80 °C)

RoHS

Accessory

Holding Bushings GN 1140
Ball Chains GN 111
Ball Chains GN 111.5
Retaining Cables GN 111.2 (with Mounting Tabs or Loops)
Spiral Retaining Cables GN 111.4

GN 214.3 Stainless Steel Rapid Release Pins, with Plastic Push Rod, with Axial Lock (Pawl) sketch

Hide technical drawing

Part Options / Table

Part Number	d₁ -0.004	l₁ +0.016 Minimum size	a	b	d₂	d₃	d₄	d₅	l₂	l₃

214.3-6-10	0.236 -0.004	0.394 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-12	0.236 -0.004	0.472 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-16	0.236 -0.004	0.630 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-20	0.236 -0.004	0.787 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-25	0.236 -0.004	0.984 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-30	0.236 -0.004	1.181 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-35	0.236 -0.004	1.378 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-40	0.236 -0.004	1.575 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-45	0.236 -0.004	1.772 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-50	0.236 -0.004	1.969 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-60	0.236 -0.004	2.362 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-70	0.236 -0.004	2.756 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-6-80	0.236 -0.004	3.150 +0.016	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
214.3-8-10	0.315 -0.004	0.394 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-16	0.315 -0.004	0.630 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-20	0.315 -0.004	0.787 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-25	0.315 -0.004	0.984 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-30	0.315 -0.004	1.181 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-35	0.315 -0.004	1.378 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-40	0.315 -0.004	1.575 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-45	0.315 -0.004	1.772 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-50	0.315 -0.004	1.969 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-60	0.315 -0.004	2.362 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-70	0.315 -0.004	2.756 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-80	0.315 -0.004	3.150 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-90	0.315 -0.004	3.543 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-8-100	0.315 -0.004	3.937 +0.016	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
214.3-10-15	0.394 -0.004	0.591 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-20	0.394 -0.004	0.787 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-25	0.394 -0.004	0.984 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-30	0.394 -0.004	1.181 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-35	0.394 -0.004	1.378 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-40	0.394 -0.004	1.575 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-45	0.394 -0.004	1.772 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-50	0.394 -0.004	1.969 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-60	0.394 -0.004	2.362 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-70	0.394 -0.004	2.756 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-80	0.394 -0.004	3.150 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-90	0.394 -0.004	3.543 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-100	0.394 -0.004	3.937 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-110	0.394 -0.004	4.331 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-10-120	0.394 -0.004	4.724 +0.016	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
214.3-12-20	0.472 -0.004	0.787 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-25	0.472 -0.004	0.984 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-30	0.472 -0.004	1.181 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-35	0.472 -0.004	1.378 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-40	0.472 -0.004	1.575 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-45	0.472 -0.004	1.772 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-50	0.472 -0.004	1.969 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-60	0.472 -0.004	2.362 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-70	0.472 -0.004	2.756 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-80	0.472 -0.004	3.150 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-90	0.472 -0.004	3.543 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-100	0.472 -0.004	3.937 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-110	0.472 -0.004	4.331 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-12-120	0.472 -0.004	4.724 +0.016	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
214.3-16-30	0.630 -0.004	1.181 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-35	0.630 -0.004	1.378 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-40	0.630 -0.004	1.575 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-45	0.630 -0.004	1.772 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-50	0.630 -0.004	1.969 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-60	0.630 -0.004	2.362 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-70	0.630 -0.004	2.756 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-80	0.630 -0.004	3.150 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-90	0.630 -0.004	3.543 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-100	0.630 -0.004	3.937 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-110	0.630 -0.004	4.331 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-120	0.630 -0.004	4.724 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-130	0.630 -0.004	5.118 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-140	0.630 -0.004	5.512 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83
214.3-16-150	0.630 -0.004	5.906 +0.016	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ -0.004	l₁ +0.016 Minimum size															a	b	d₂	d₃	d₄	d₅	l₂	l₃

0.236	0.394	0.472	0.630	0.787	0.984	1.181	1.378	1.575	1.772	1.969	2.362	2.756	3.150	-	-	0.09	0.02	0.29 +0.02	0.23	0.47	0.91	0.28	1.50
0.315	0.394	0.630	0.787	0.984	1.181	1.378	1.575	1.772	1.969	2.362	2.756	3.150	3.543	3.937	-	0.11	0.02	0.39 +0.02	0.31	0.47	0.91	0.33	1.50
0.394	0.591	0.787	0.984	1.181	1.378	1.575	1.772	1.969	2.362	2.756	3.150	3.543	3.937	4.331	4.724	0.13	0.04	0.46 +0.04	0.39	0.63	1.10	0.39	1.65
0.472	0.787	0.984	1.181	1.378	1.575	1.772	1.969	2.362	2.756	3.150	3.543	3.937	4.331	4.724	-	0.15	0.04	0.54 +0.04	0.47	0.63	1.10	0.44	1.65
0.630	1.181	1.378	1.575	1.772	1.969	2.362	2.756	3.150	3.543	3.937	4.331	4.724	5.118	5.512	5.906	0.19	0.05	0.74 +0.04	0.63	0.79	1.26	0.56	1.83

Build & Price

Load Capacity of Rapid Release Pins

Information
The load capacities specified in the table for the double shear strength (breaking strength) have been calculated or theoretically determined in accordance with DIN 50141.

The endangered bolt cross-section S was considered in two shear planes until breakage, according to the sketch shown opposite.

The details given on load capacity are non-binding guide values without any liability. In general, they do not constitute a warranty of quality. The user must determine from case to case if a product is suitable for the application. Ambient influences may affect the specified values.

An appropriate safety factor must be taken into account in the design.

Load capacity F ≈ double shear strength according to DIN 50141 (breaking strength)

Show / Hide columns

d₁ Pin diameter	GN 214.3

6	3822 lbf (17 kN)
8	7868 lbf (35 kN)
10	10566 lbf (47 kN)
12	16861 lbf (75 kN)
16	31024 lbf (138 kN)

Selected Part

Part Number

Total (net)

Mex$575.40

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$575.40
100	249	Mex$527.45
250	499	Mex$479.50
≥ 500		Mex$431.55

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.039 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
