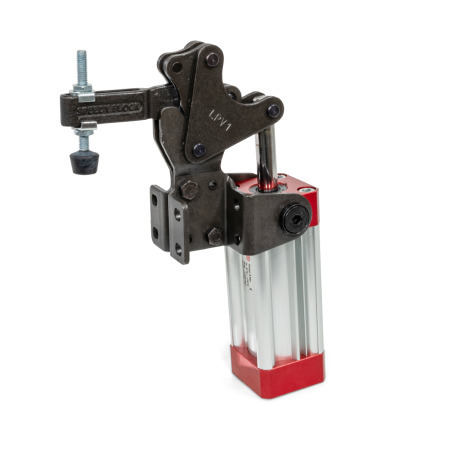

Heavy duty pneumatic toggle clamps GN 962 are equipped with a reinforced body, and bearing pins and bushings are hardened and ground. This makes them suitable for applications in which substantial forces arise and a long service life is required.
To ensure an extended life of the mechanical parts as well as the pneumatic cylinder, the operating pressure should not exceed 6 bar. In addition, a compressed-air control unit should be mounted in the air intake line.
Heavy duty pneumatic toggle clamps GN 962 are equipped with a magnetic piston as standard. This makes end position detection possible in connection with sensors GN 3380.
Specification
Tensioning mechanism
Steel
Base phosphate-treated
Bearing pins / Bearing bushings
Hardened / ground
Double-action air cylinder
with adjustable end position damping
Max. pressure 6 bar
Moving parts
Lubricated with special grease
Flanged washers GN 898 for type APV / CPV
Steel
Zinc plated, blue passivated finish
Toggle Clamp Spindle Assemblies GN 708.1 for type CPV
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 2.187 lbs
