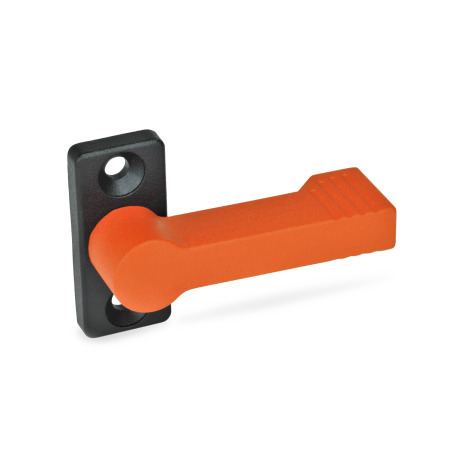

Stop Latches GN 702

Type: A - With screw-on flange
Color: OS - Orange, RAL 2004, textured finish

Accessories for Profile Systems

Standard elements in this product family are compatible with the most common aluminium profile systems. Using matching assembly sets, the Winco standard elements are easily and cost-effectively connected with the profiles without the time-consuming compiling of individual parts in the order.

compatible with the common profile systems
for groove widths of 6, 8 and 10 mm
for profiles 30, 40 and 45 mm

Show All Compatible Products

Product description

Stop latches GN 702 offer a fast and easy way to close and hold doors, flaps, slide-in modules, etc. They latch in four positions (90°).
Type C stop latches have the same connecting dimensions as mini latches GN 115.1 and GN 115.6. The mounting bores are to be selected accordingly.
The installation bore in the door leaf is usually generated by punching or laser machining during a mass production run.
For small production runs and steel sheets below 2 mm thickness, sheet metal punches GN 123 are the tool of choice.
The installation bore can also be created by drilling or milling.

Specification

Stop latch
Zinc die-cast
Powder coated

Black, RAL 9005, textured finishSW
Red, RAL 3000, textured finishRS
Orange, RAL 2004, textured finishOS

Indexing mechanism

Zinc die-cast / Plastic for Type A
Steel / Plastic for Type B / C
Steel parts
Zinc plated, blue passivated finish

Screw-on flange for type A
Zinc die-cast
Powder coated
Black, matte finish

Hex nut for type C
Steel, zinc plated

RoHS

Accessory

Sheet Metal Punches GN 123

Part Number SW	Part Number RS	Part Number OS	d	r	b	l₁ ≈	l₂	l₃ min.	l₄

702-17-40-A-SW	702-17-40-A-RS	702-17-40-A-OS	0.67	1.57	0.39	0.22	0.65	0.85	0.43
702-17-55-A-SW	702-17-55-A-RS	702-17-55-A-OS	0.67	2.17	0.39	0.22	0.65	0.85	0.43

Part Number SW	Part Number RS	Part Number OS	d	r	b	l₁ ≈	l₂	l₃ min.	l₄

702-17-40-B-SW	702-17-40-B-RS	702-17-40-B-OS	0.67	1.57	0.39	0.22	0.65	0.85	0.43
702-17-55-B-SW	702-17-55-B-RS	702-17-55-B-OS	0.67	2.17	0.39	0.22	0.65	0.85	0.43

Part Number SW	Part Number RS	Part Number OS	d	r	b	l₁ ≈	l₂	l₃ min.	l₄

702-17-40-C-SW	702-17-40-C-RS	702-17-40-C-OS	0.67	1.57	0.39	0.22	0.65	0.85	0.43
702-17-55-C-SW	702-17-55-C-RS	702-17-55-C-OS	0.67	2.17	0.39	0.22	0.65	0.85	0.43

d	r	b	l₁ ≈	l₂	l₃ min.	l₄

0.67	1.57	0.39	0.22	0.65	0.85	0.43
0.67	2.17	0.39	0.22	0.65	0.85	0.43

l₁ ≈

l₂

l₃
min.

l₄

0.67

1.57

0.39

0.22

0.65

0.85

0.43

0.67

2.17

0.39

0.22

0.65

0.85

0.43

Selected Part

Part Number

Total (net)

Mex$387.60

In Stock: 6

In Stock

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$387.60
100	249	Mex$355.30
250	499	Mex$323.00
≥ 500		Mex$290.70

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.165 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
