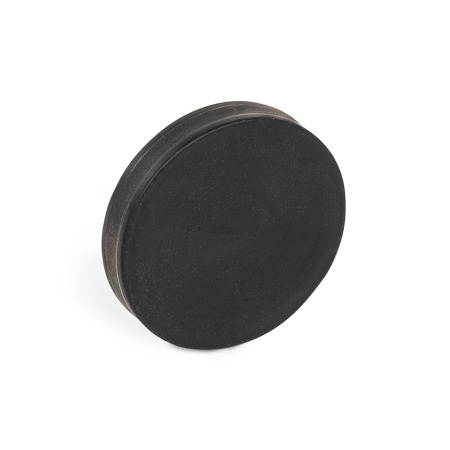

GN 51.1 Retaining Magnets Neodymium, Iron, Boron (NdFeB), Magnetic on Both Sides, with Rubber Jacket

Retaining magnets GN 51.1 with rubber jacket are used to join parts together. The opposing magnetic surfaces make a fastening hole unnecessary. The side on which the magnet adheres more strongly depends on the material, the material thickness and the surface characteristics of the respective opposing part.

The retaining magnets form a system together with the steel part that strengthens the magnetic force, optimally concentrating the magnetic flux on the rubberized magnetic surfaces.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.

Specification

Magnet
NdFeBND
Neodymium, iron, boron
Operating temperature up to 176 °F (80 °C)

Sheathing
Thermoplastic elastomer (TPE)

• Hardness ≈ 80 Shore A
• BlackSW

RoHS

Accessory

Holding Disks GN 70
Self-Adhesive Disks GN 70.1

On request

• Other colors
• Other Shore hardnesses
