GN 9734 Clamping Plates Zinc Die-Cast, for Configurable Linear Actuators

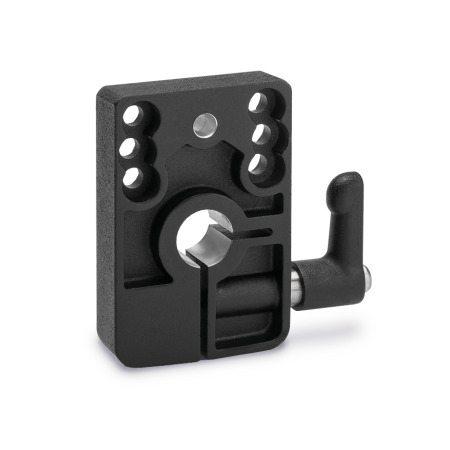

Clamping Plates GN 9734: Zinc Die-Cast, for Configurable Linear Actuators

Type: B - For electronic position indicators

ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Clamping plates GN 9734 are used to fix the spindles of configurable linear actuators in place after adjustment.

Using a adjustable lever, the bore diamter of the clamping plate is reduced until the spindle stem of the linear actuator is clamped, preventing unintentional adjustment of the approached position.

The enclosed spiral pin connects the clamping plate to the torque support, preventing it from twisting. If no position indicator is mounted to the linear actuator, as shown in the example, type A is recommended.

Specification

Clamping plate
Zinc die-cast
Powder coated
Black, textured finish

Spiral pin ISO 8750
Stainless steel

Adjustable lever GN 302.1

Handle
Zinc die-cast
Powder coated
Black, RAL 9005, textured finish
Threaded insert
Stainless steel AISI 303

RoHS

GN 9734 Zinc Die-Cast Clamping Plates, for Configurable Linear Actuators sketch

Hide technical drawing

Part Options / Table

Type

A	For mechanical position indicators or without position indicator
B	For electronic position indicators

Part Number	d₁ Ø Linear actuator	b	d₂ F9	l₁ Type A	Type B	l₂ Type A	Type B	l₃	Compatible with position indicator Type A	Type B

9734-30-A	1.18	1.30	0.31 F9	1.85	-	1.20	-	0.96	EN 9534	EN 9034
9734-30-B	1.18	1.30	0.31 F9	-	2.17	-	1.20	0.96	EN 9534	EN 9034
9734-40-A	1.57	1.89	0.47 F9	2.62	-	1.69	-	0.96	EN 9534	EN 9034
9734-40-B	1.57	1.89	0.47 F9	-	2.87	-	1.59	0.96	EN 9534	EN 9034
9734-50-A	1.97	1.89	0.47 F9	2.62	-	1.69	-	0.96	EN 9534	EN 9034
9734-50-B	1.97	1.89	0.47 F9	-	2.87	-	1.59	0.96	EN 9534	EN 9034
9734-60-A	2.36	1.89	0.55 F9	2.62	-	1.69	-	0.96	EN 9534	EN 9034
9734-60-B	2.36	1.89	0.55 F9	-	2.87	-	1.59	0.96	EN 9534	EN 9034

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ Ø Linear actuator	b	d₂ F9	l₁ Type A	Type B	l₂ Type A	Type B	l₃	Compatible with position indicator Type A	Type B

1.18	1.30	0.31	1.85	2.17	1.20	1.20	0.96	EN 9534	EN 9034
1.57	1.89	0.47	2.62	2.87	1.69	1.59	0.96	EN 9534	EN 9034
1.97	1.89	0.47	2.62	2.87	1.69	1.59	0.96	EN 9534	EN 9034
2.36	1.89	0.55	2.62	2.87	1.69	1.59	0.96	EN 9534	EN 9034

Build & Price

Diameter d₁

1.18

1.57

1.97

2.36

Type

A - For mechanical position indicators or without position indicator

B - For electronic position indicators

Selected Part

Part Number

Total (net)

Mex$747.00

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$747.00
50	99	Mex$684.75
100	249	Mex$622.50
≥ 250		Mex$560.25

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.240 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
