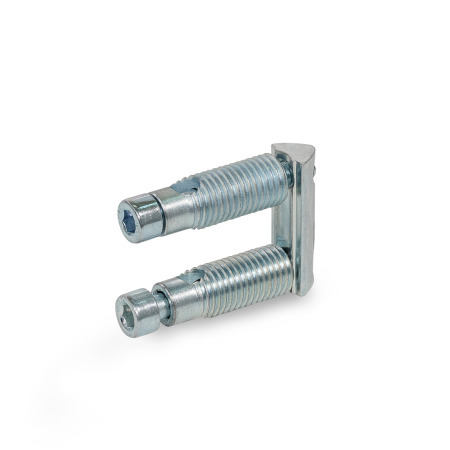

GN 23i Automatic Connectors Steel, with Double T-Nut, for Aluminum Profiles (i-Modular System), Right-Angled Connection

Automatic Connectors GN 23i: Steel, with Double T-Nut, for Aluminum Profiles (i-Modular System), Right-Angled Connection

i-Modular System (Item compatible)

Product description

Automatic connectors GN 23i fasten aluminum profiles at right angles and secure them against twisting. Machining of the profile is not necessary. The connection can be freely positioned and slid along the slot.

For assembly, first insert the socket cap screw along the slot and then screw in the lightly lubricated threaded bushing. Minor burr formation is possible. Automatic connectors are used in pairs opposite each other. If panels are used in the slot, they must be suitably pocketed.

Automatic connectors are supplied in bundles. The table shows the quantity included in each bundle.

Specification

Steel
Zinc plated, blue passivated finishSZ

RoHS

GN 23i Steel Automatic Connectors, with Double T-Nut, for Aluminum Profiles (i-Modular System), Right-Angled Connection sketch

Hide technical drawing

Part Options / Table

Profile type

Heavy

Coding

D	With 2 screws and double T-nut

Part Number	s	n	Bundle Pieces	d₁ Self-forming thread	d₂	h	l₁	l₂	l₃	m	A/F₁ in mm	A/F₂ in mm	Tightening torque in Nm

23I-306S-D-SZ-2	1.18	0.24	2	S 10	M 5	0.28	1.26	-	1.10	0.67	4	5	8
23I-408S-D-SZ-2	1.57	0.31	2	S 10	M 5	0.24	1.26	-	1.42	0.94	5	6	14
23I-606S-D-SZ-2	2.36	0.24	2	S 10	M 5	0.28	1.26	-	2.28	1.85	4	5	8
23I-808S-D-SZ-2	3.15	0.31	2	S 12	M 6	0.28	1.36	0.10	2.99	2.52	5	6	14

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

s	n	Bundle Pieces	d₁ Self-forming thread	d₂	h	l₁	l₂	l₃	m	A/F₁ in mm	A/F₂ in mm	Tightening torque in Nm

1.18	0.24	2	S 10	M 5	0.28	1.26	-	1.10	0.67	4	5	8
1.57	0.31	2	S 10	M 5	0.24	1.26	-	1.42	0.94	5	6	14
2.36	0.24	2	S 10	M 5	0.28	1.26	-	2.28	1.85	4	5	8
3.15	0.31	2	S 12	M 6	0.28	1.36	0.10	2.99	2.52	5	6	14

Build & Price

Assembly Instructions

Selected Part

Part Number

Total (net)

Mex$588.60

Available within 2 weeks

Bundle

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$588.60
50	99	Mex$539.55
100	249	Mex$490.50
≥ 250		Mex$441.45

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.167 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
