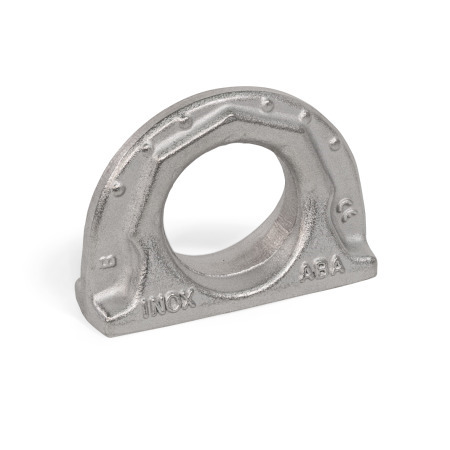

GN 589.5 Lifting Points Stainless Steel, Weldable

Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products
Standard Sheet GN 589.5 Print This Page Operating Instruction GN 589 / GN 589.5

Product description

Weldable lifting points GN 589.5 are intended for suspending lifting gear and lashing elements and are characterized by a particularly low profile. They are welded e.g. to load attachment points or directly onto the load itself and can absorb loads in any direction.

The nominal load capacity specified in the table is clearly marked on the lifting point. It applies to the most unfavourable load application of the load types listed opposite. It applies to the least favorable load case of the listed load types.

Lifting points GN 589.5 comply with Machinery Directive 2006 / 42 / EG.

Specification

Stainless steel German Material No. 1.4462

  • Forged
  • 100 % electro magnetic tensile tested to EN 1677
  • Passivated by pickling

RoHS

GN 589.5 Stainless Steel Lifting Points, Weldable sketch
Hide technical drawing
GN 589.5 Stainless Steel Lifting Points, Weldable sketch

Part Options / Table
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
bdh1h2k1k2Nominal load (WLL)
in metric tons		Max. permissible
lashing force
in daN (LC)
2.761.261.501.970.470.870.81600
3.941.381.632.240.631.181.63200
5.391.972.323.150.911.612.75400

Build & Price
Width b
Width b

Load Capacity
33892310-4725-440c-ade0-e63a12902418
Show / Hide columns
bF1
max. in t		F2
max. in t
700.83
1001.65
1372.77.5

Discard maturity / Service life / Safety instructions
94b57924-eae1-4bb0-aee5-d0ea85de62d8

  1. The wear marks can be used to check the wear of the anchor point. If these coincide with the outer contour or the contour of the hole, the end of the service life of the anchor point has been reached, which is also referred to as discard maturity.

  2. If the anchor point is bent or has damage or cracks, it is no longer safe to continue using it and must therefore not be used.

In both cases, the anchor point must be replaced.

Fastening / Welding Instructions
15cc4b37-e5f4-49c2-b423-990e856c5e29
Show / Hide columns
ba
Size fillet seam
703
1004
1376
1727
2288

The welding must be carried out by a certified welder according to EN 287-1.
The specified load values apply at an operating temperature of -40 °F to +392 °F (-40 °C to +200 °C). Load bearing capacity at higher temperatures on request.

The operating instructions contain further important information and notes. It is part of the scope of delivery and can be downloaded as a PDF in our download section.

Selected Part

Total (net)
Mex$5,607.00
Available within 2 weeks
Create Project List
Save as Favorites
Recommend a product

Please enter the code above.

Please note our quantity discounts (Mexican Pesos).
MinMaxPrice
14Mex$5,607.00
59Mex$5,139.75
1024Mex$4,672.50
≥ 25Mex$4,205.25
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.440 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
