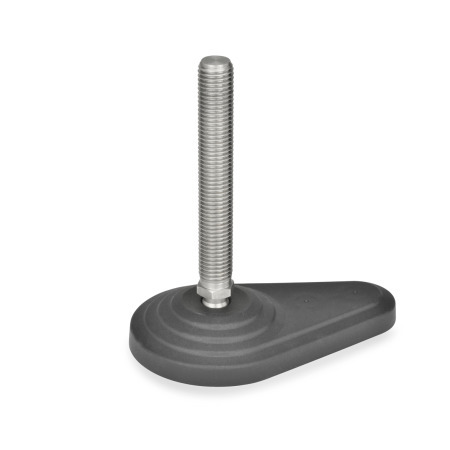

Leveling Feet EN 445.5

Original design
code: LV.FO-SST

Type: A - Without nut, without rubber pad

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Operating Instruction EN 445 / EN 445.5 Strength Values of Screws Plastic Characteristics Stainless Steel Characteristics

Product description

Leveling feet EN 445.5 are capable of withstanding high static loads through the use of a high density plastic material coupled with a design which distributes the load over a larger area.

The values given in the table regarding the static load capacity serve as a guide line only and if these are exceeded serious permanent deformation or breakage of the plastic socket could occur.

The above values have been arrived at by a series of tests whereby a limited number of leveling feet were subjected for a limited time to a vertical static load to the feet.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

The fixing holes are closed by a thin plastic layer, which may be easily punctured.

Leveling feet EN 445.5 are supplied assembled, but are removable.

Specification

Base plate
Plastic, Polyamide (PA)

Glass fiber reinforced
Black, matte finish
Operating temperature
-22 °F to +212 °F (-30 °C to +100 °C)

Threaded stud
Stainless steel AISI 303

Hex nut ISO 4032
Stainless steel AISI 304

Rubber underlay (NBR)
70 Shore A, black

RoHS

Your Contact

You are looking for a Winco partner near you?

Part Number A - Without nut, without rubber pad	Part Number B - With nut, without rubber pad	Part Number AG - Without nut, with rubber pad	Part Number BG - With nut, with rubber pad	d₁	d₂	l₁	b	d₃	k₁	k₂	l₂	l₃	l₄	A/F	Ball Ø	Static load (see information)


445.5-60-M8-43-A	445.5-60-M8-43-B	445.5-60-M8-43-AG	445.5-60-M8-43-BG	2.36	M 8	1.69	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M8-68-A	445.5-60-M8-68-B	445.5-60-M8-68-AG	445.5-60-M8-68-BG	2.36	M 8	2.68	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M10-43-A	445.5-60-M10-43-B	445.5-60-M10-43-AG	445.5-60-M10-43-BG	2.36	M 10	1.69	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M10-68-A	445.5-60-M10-68-B	445.5-60-M10-68-AG	445.5-60-M10-68-BG	2.36	M 10	2.68	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M10-98-A	445.5-60-M10-98-B	445.5-60-M10-98-AG	445.5-60-M10-98-BG	2.36	M 10	3.86	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M12-43-A	445.5-60-M12-43-B	445.5-60-M12-43-AG	445.5-60-M12-43-BG	2.36	M 12	1.69	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M12-68-A	445.5-60-M12-68-B	445.5-60-M12-68-AG	445.5-60-M12-68-BG	2.36	M 12	2.68	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M12-98-A	445.5-60-M12-98-B	445.5-60-M12-98-AG	445.5-60-M12-98-BG	2.36	M 12	3.86	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M14-68-A	445.5-60-M14-68-B	445.5-60-M14-68-AG	445.5-60-M14-68-BG	2.36	M 14	2.68	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M14-98-A	445.5-60-M14-98-B	445.5-60-M14-98-AG	445.5-60-M14-98-BG	2.36	M 14	3.86	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M14-148-A	445.5-60-M14-148-B	445.5-60-M14-148-AG	445.5-60-M14-148-BG	2.36	M 14	5.83	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
445.5-60-M16-68-A	445.5-60-M16-68-B	445.5-60-M16-68-AG	445.5-60-M16-68-BG	2.36	M 16	2.68	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.63	0.55	3147 lbf (14 kN)
445.5-60-M16-108-A	445.5-60-M16-108-B	445.5-60-M16-108-AG	445.5-60-M16-108-BG	2.36	M 16	4.25	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.63	0.55	3147 lbf (14 kN)
445.5-60-M16-148-A	445.5-60-M16-148-B	445.5-60-M16-148-AG	445.5-60-M16-148-BG	2.36	M 16	5.83	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.63	0.55	3147 lbf (14 kN)
445.5-60-M16-168-A	445.5-60-M16-168-B	445.5-60-M16-168-AG	445.5-60-M16-168-BG	2.36	M 16	6.61	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.63	0.55	3147 lbf (14 kN)
445.5-80-M8-43-A	445.5-80-M8-43-B	445.5-80-M8-43-AG	445.5-80-M8-43-BG	3.15	M 8	1.69	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3147 lbf (14 kN)
445.5-80-M8-68-A	445.5-80-M8-68-B	445.5-80-M8-68-AG	445.5-80-M8-68-BG	3.15	M 8	2.68	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3147 lbf (14 kN)
445.5-80-M10-43-A	445.5-80-M10-43-B	445.5-80-M10-43-AG	445.5-80-M10-43-BG	3.15	M 10	1.69	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M10-68-A	445.5-80-M10-68-B	445.5-80-M10-68-AG	445.5-80-M10-68-BG	3.15	M 10	2.68	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M10-98-A	445.5-80-M10-98-B	445.5-80-M10-98-AG	445.5-80-M10-98-BG	3.15	M 10	3.86	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M12-43-A	445.5-80-M12-43-B	445.5-80-M12-43-AG	445.5-80-M12-43-BG	3.15	M 12	1.69	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M12-68-A	445.5-80-M12-68-B	445.5-80-M12-68-AG	445.5-80-M12-68-BG	3.15	M 12	2.68	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M12-98-A	445.5-80-M12-98-B	445.5-80-M12-98-AG	445.5-80-M12-98-BG	3.15	M 12	3.86	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M14-68-A	445.5-80-M14-68-B	445.5-80-M14-68-AG	445.5-80-M14-68-BG	3.15	M 14	2.68	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M14-98-A	445.5-80-M14-98-B	445.5-80-M14-98-AG	445.5-80-M14-98-BG	3.15	M 14	3.86	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M14-148-A	445.5-80-M14-148-B	445.5-80-M14-148-AG	445.5-80-M14-148-BG	3.15	M 14	5.83	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
445.5-80-M16-68-A	445.5-80-M16-68-B	445.5-80-M16-68-AG	445.5-80-M16-68-BG	3.15	M 16	2.68	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.63	0.55	3597 lbf (16 kN)
445.5-80-M16-108-A	445.5-80-M16-108-B	445.5-80-M16-108-AG	445.5-80-M16-108-BG	3.15	M 16	4.25	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.63	0.55	3597 lbf (16 kN)
445.5-80-M16-148-A	445.5-80-M16-148-B	445.5-80-M16-148-AG	445.5-80-M16-148-BG	3.15	M 16	5.83	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.63	0.55	3597 lbf (16 kN)
445.5-80-M16-168-A	445.5-80-M16-168-B	445.5-80-M16-168-AG	445.5-80-M16-168-BG	3.15	M 16	6.61	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.63	0.55	3597 lbf (16 kN)

d₁	d₂	l₁	b	d₃	k₁	k₂	l₂	l₃	l₄	A/F	Ball Ø	Static load (see information)

2.36	M 8	1.69	2.68	-	-	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
2.36	M 10	1.69	2.68	3.86	-	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
2.36	M 12	1.69	2.68	3.86	-	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
2.36	M 14	2.68	3.86	5.83	-	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.55	0.55	3147 lbf (14 kN)
2.36	M 16	2.68	4.25	5.83	6.61	3.80	0.33	1.97	0.71	1.18	0.55	0.83	0.63	0.55	3147 lbf (14 kN)
3.15	M 8	1.69	2.68	-	-	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3147 lbf (14 kN)
3.15	M 10	1.69	2.68	3.86	-	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
3.15	M 12	1.69	2.68	3.86	-	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
3.15	M 14	2.68	3.86	5.83	-	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.55	0.55	3597 lbf (16 kN)
3.15	M 16	2.68	4.25	5.83	6.61	5.12	0.41	2.76	0.98	1.22	0.55	0.87	0.63	0.55	3597 lbf (16 kN)
