Split Shaft Collars GN 707.4

Material: ST - Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

PFB / PRB Thread Locking ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

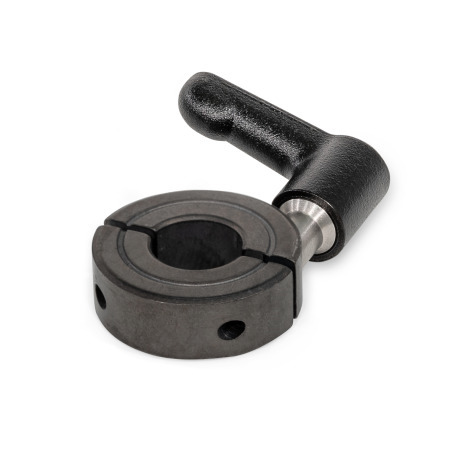

Split shaft collars GN 707.4 are used when axial mounting is not possible. They can be clamped easily and quickly without tools by reducing the slot height using an adjustable lever. For example, this allows them to be used as an end stop that must be frequently adjusted.

The thread locking of the supplied socket cap screw ensures that the slot height set during installation is retained even when the clamping lever is released.

The dimensions of the split shaft collars correspond to the semi-split shaft collars GN 706.2 / GN 706.4. The thread d₃ for sizes d₁ = 16mm to 36mm is designed as a through hole; for sizes d₁ = 42mm and larger, it is designed as a blind hole.

Specification

Shaft collar

SteelST, sintered (Distaloy AB)
Black, steam oxidized
Stainless steelNI AISL 316L
Sintered
AluminumAL, turned
Ground

Socket cap screw ISO 4762
Stainless steel AISI 304
Thread locking
Polyamide patch coating (PFB)
Blue

Adjustable lever

Zinc die-cast
Powder coated
Black, RAL 9005, textured finish
Insert / Retaining screw
Stainless steel AISI 303

RoHS

Accessory

Damping Washers GN 7072.30

Your Contact

You are looking for a Winco partner near you?

Part Number ST - Steel	Part Number NI - Stainless steel	Part Number AL - Aluminum	d₁	d₂ H10 ST, NI	AL	b ±0.008	d₃	d₄	l₁ ≈	l₂	s


707.4-16-B4-ST	707.4-16-B4-NI		0.63	B 4 H10	-	0.354 ±0.008	M 3	0.51	1.04	0.87	0.08
707.4-16-B5-ST	707.4-16-B5-NI		0.63	B 5 H10	-	0.354 ±0.008	M 3	0.51	1.04	0.87	0.08
707.4-20-B6-ST	707.4-20-B6-NI		0.79	B 6 H10	-	0.354 ±0.008	M 3	0.51	1.16	0.87	0.08
		707.4-20-B6-AL	0.79	-	B 6	0.354 ±0.008	M 3	0.51	1.16	0.87	0.08
707.4-22-B8-ST	707.4-22-B8-NI		0.87	B 8 H10	-	0.354 ±0.008	M 3	0.51	1.16	0.87	0.08
		707.4-22-B8-AL	0.87	-	B 8	0.354 ±0.008	M 3	0.51	1.16	0.87	0.08
707.4-26-B10-ST	707.4-26-B10-NI		1.02	B 10 H10	-	0.433 ±0.008	M 4	0.51	1.22	0.87	0.08
		707.4-26-B10-AL	1.02	-	B 10	0.433 ±0.008	M 4	0.51	1.22	0.87	0.08
707.4-30-B12-ST	707.4-30-B12-NI		1.18	B 12 H10	-	0.433 ±0.008	M 4	0.51	1.46	1.18	0.08
		707.4-30-B12-AL	1.18	-	B 12	0.433 ±0.008	M 4	0.51	1.46	1.18	0.08
707.4-32-B14-ST	707.4-32-B14-NI		1.26	B 14 H10	-	0.433 ±0.008	M 4	0.51	1.46	1.18	0.08
		707.4-32-B14-AL	1.26	-	B 14	0.433 ±0.008	M 4	0.51	1.46	1.18	0.08
707.4-36-B15-ST	707.4-36-B15-NI		1.42	B 15 H10	-	0.512 ±0.008	M 5	0.51	1.52	1.18	0.08
707.4-36-B16-ST	707.4-36-B16-NI		1.42	B 16 H10	-	0.512 ±0.008	M 5	0.51	1.52	1.18	0.08
		707.4-36-B15-AL	1.42	-	B 15	0.512 ±0.008	M 5	0.51	1.52	1.18	0.08
		707.4-36-B16-AL	1.42	-	B 16	0.512 ±0.008	M 5	0.51	1.52	1.18	0.08
707.4-42-B18-ST	707.4-42-B18-NI		1.65	B 18 H10	-	0.591 ±0.008	M 5	0.51	1.61	1.18	0.12
707.4-42-B20-ST	707.4-42-B20-NI		1.65	B 20 H10	-	0.591 ±0.008	M 5	0.51	1.61	1.18	0.12
		707.4-42-B18-AL	1.65	-	B 18	0.591 ±0.008	M 5	0.51	1.61	1.18	0.12
		707.4-42-B20-AL	1.65	-	B 20	0.591 ±0.008	M 5	0.51	1.61	1.18	0.12
707.4-48-B22-ST	707.4-48-B22-NI		1.89	B 22 H10	-	0.591 ±0.008	M 5	0.51	1.69	1.77	0.12
707.4-48-B25-ST	707.4-48-B25-NI		1.89	B 25 H10	-	0.591 ±0.008	M 5	0.51	1.69	1.77	0.12
		707.4-48-B22-AL	1.89	-	B 22	0.591 ±0.008	M 5	0.51	1.69	1.77	0.12
		707.4-48-B25-AL	1.89	-	B 25	0.591 ±0.008	M 5	0.51	1.69	1.77	0.12
707.4-55-B28-ST	707.4-55-B28-NI		2.17	B 28 H10	-	0.591 ±0.008	M 6	0.51	1.77	1.77	0.12
707.4-55-B30-ST	707.4-55-B30-NI		2.17	B 30 H10	-	0.591 ±0.008	M 6	0.51	1.77	1.77	0.12
		707.4-55-B28-AL	2.17	-	B 28	0.591 ±0.008	M 6	0.51	1.77	1.77	0.12
		707.4-55-B30-AL	2.17	-	B 30	0.591 ±0.008	M 6	0.51	1.77	1.77	0.12
707.4-60-B32-ST	707.4-60-B32-NI		2.36	B 32 H10	-	0.591 ±0.008	M 6	0.51	1.83	1.77	0.16
707.4-60-B35-ST	707.4-60-B35-NI		2.36	B 35 H10	-	0.591 ±0.008	M 6	0.51	1.83	1.77	0.16
		707.4-60-B32-AL	2.36	-	B 32	0.591 ±0.008	M 6	0.51	1.83	1.77	0.16
		707.4-60-B35-AL	2.36	-	B 35	0.591 ±0.008	M 6	0.51	1.83	1.77	0.16
707.4-65-B40-ST	707.4-65-B40-NI		2.56	B 40 H10	-	0.591 ±0.008	M 6	0.51	1.87	1.77	0.16
		707.4-65-B40-AL	2.56	-	B 40	0.591 ±0.008	M 6	0.51	1.87	1.77	0.16

d₁	d₂ H10 ST, NI	AL	b ±0.008	d₃	d₄	l₁ ≈	l₂	s

0.63	B 4	B 5	-	-	0.354	M 3	0.51	1.04	0.87	0.08
0.79	B 6	-	B 6	-	0.354	M 3	0.51	1.16	0.87	0.08
0.87	B 8	-	B 8	-	0.354	M 3	0.51	1.16	0.87	0.08
1.02	B 10	-	B 10	-	0.433	M 4	0.51	1.22	0.87	0.08
1.18	B 12	-	B 12	-	0.433	M 4	0.51	1.46	1.18	0.08
1.26	B 14	-	B 14	-	0.433	M 4	0.51	1.46	1.18	0.08
1.42	B 15	B 16	B 15	B 16	0.512	M 5	0.51	1.52	1.18	0.08
1.65	B 18	B 20	B 18	B 20	0.591	M 5	0.51	1.61	1.18	0.12
1.89	B 22	B 25	B 22	B 25	0.591	M 5	0.51	1.69	1.77	0.12
2.17	B 28	B 30	B 28	B 30	0.591	M 6	0.51	1.77	1.77	0.12
2.36	B 32	B 35	B 32	B 35	0.591	M 6	0.51	1.83	1.77	0.16
2.56	B 40	-	B 40	-	0.591	M 6	0.51	1.87	1.77	0.16
