GN 815.1 Ball Plungers Steel, with Internal Hex Head

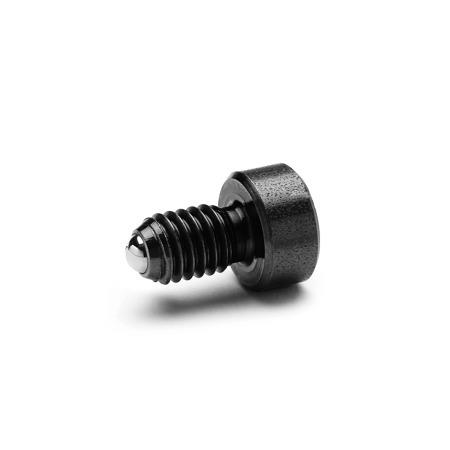

Ball Plungers GN 815.1: Steel, with Internal Hex Head

Type: ST - Steel, standard spring load

Product description

Ball plungers GN 815.1 are used as stops as well as thrust elements or ejectors.

The head gives a defined and fixed installation position.

Specification

Housing
Steel, blackened finish

Ball
Steel, hardened

RoHS

Accessory

Mounting Blocks GN 3492 (Stainless steel)

GN 815.1 Steel Ball Plungers, with Internal Hex Head sketch

Hide technical drawing

Part Options / Table

Type

ST	Steel, standard spring load
STS	Steel, high spring load

Part Number	d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard (Type ST) Initial	End	Spring load ≈ High (Type STS) Initial	End

815.1-M4-ST	M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
815.1-M5-ST	M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
815.1-M6-ST	M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
815.1-M8-ST	M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
815.1-M10-ST	M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
815.1-M12-ST	M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)

Part Number	d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard (Type ST) Initial	End	Spring load ≈ High (Type STS) Initial	End

815.1-M4-STS	M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
815.1-M5-STS	M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
815.1-M6-STS	M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
815.1-M8-STS	M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
815.1-M10-STS	M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
815.1-M12-STS	M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard (Type ST) Initial	End	Spring load ≈ High (Type STS) Initial	End

M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)

Build & Price

Type

ST - Steel, standard spring load

STS - Steel, high spring load

Selected Part

Part Number

Total (net)

Mex$165.60

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$165.60
100	249	Mex$151.80
250	499	Mex$138.00
≥ 500		Mex$124.20
