EN 639 Small Wing Screws Plastic, with Steel Threaded Stud

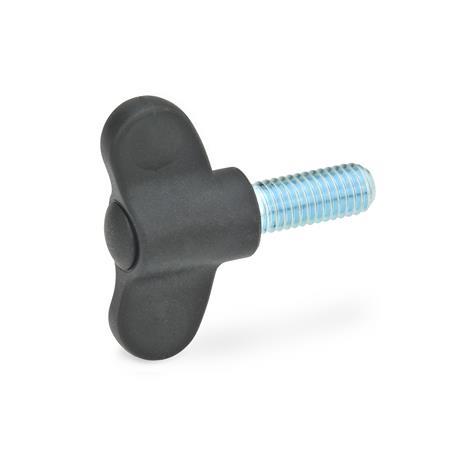

Small Wing Screws EN 639: Plastic, with Steel Threaded Stud

Original design
code: CWN.p

Plastic Characteristics

Product description

The slightly concave indentations on the ends of the small wing screws EN 639 help to position the fingers to apply the maximum force when tightening.

Resistant to solvents, oils, grease and other chemical agents.

Specification

Wing nut
Plastic, Polyamide (PA)

Glass fiber reinforced
Operating temperature
-22 °F to +266 °F (-30 °C to 130 °C)
Black, matte finish

**Threaded stud **
Steel, zinc plated, blue passivated finish

RoHS

EN 639 Plastic Small Wing Screws, with Steel Threaded Stud sketch

Hide technical drawing

Part Options / Table

Part Number	d₁	d₂	Length l	d₃	b	h₁	h₂

639-32-M4-10	1.26	M 4	0.39	0.47	0.24	0.65	0.14
639-32-M4-16	1.26	M 4	0.63	0.47	0.24	0.65	0.14
639-32-M5-10	1.26	M 5	0.39	0.47	0.24	0.65	0.14
639-32-M5-16	1.26	M 5	0.63	0.47	0.24	0.65	0.14
639-32-M5-20	1.26	M 5	0.79	0.47	0.24	0.65	0.14
639-32-M6-10	1.26	M 6	0.39	0.47	0.24	0.65	0.14
639-32-M6-16	1.26	M 6	0.63	0.47	0.24	0.65	0.14
639-32-M6-20	1.26	M 6	0.79	0.47	0.24	0.65	0.14
639-32-M6-25	1.26	M 6	0.98	0.47	0.24	0.65	0.14
639-40-M8-16	1.57	M 8	0.63	0.53	0.26	0.83	0.18
639-40-M8-20	1.57	M 8	0.79	0.53	0.26	0.83	0.18
639-40-M8-25	1.57	M 8	0.98	0.53	0.26	0.83	0.18
639-40-M8-30	1.57	M 8	1.18	0.53	0.26	0.83	0.18

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	Length l				d₃	b	h₁	h₂

1.26	M 4	0.39	0.63	-	-	0.47	0.24	0.65	0.14
1.26	M 5	0.39	0.63	0.79	-	0.47	0.24	0.65	0.14
1.26	M 6	0.39	0.63	0.79	0.98	0.47	0.24	0.65	0.14
1.57	M 8	0.63	0.79	0.98	1.18	0.53	0.26	0.83	0.18

Build & Price

Selected Part

Part Number

Total (net)

Mex$53.35

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	9	Mex$53.35
10	249	Mex$51.41
250	499	Mex$48.50
≥ 500		Mex$43.65

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.016 lbs
