EN 5337.13 Five-Lobed Knobs Plastic, with Steel Threaded Stud, with Loss Protection

Five-Lobed Knobs EN 5337.13: Plastic, with Steel Threaded Stud, with Loss Protection

Original design
code: VCT--p-LP

More Knobs with Loss Protection GN 111.7 Plastic Characteristics Stainless Steel Characteristics

Product description

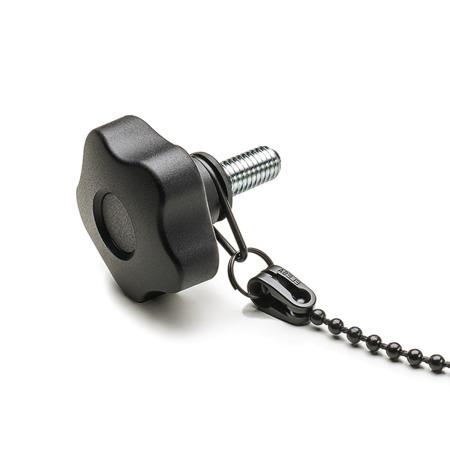

Five-lobed knobs EN 5337.13 with threaded stud can be captively attached to a base element with the help of a beaded chain.

These knobs comev installed (with a beaded plastic chain).

Specification

Knob
Plastic, Polypropylen (PP)

Reinforced, shock resistant
Operating temperature
32 °F to 140 °F (0 °C to +60 °C)
Black, matte finish

Threaded stud
Steel zinc plated, blue passivated finish

Lanyard ring ring / Ball chain
Plastic, Polyacetal (POM)
Black

Key ring
Stainless steel AISI 301
Chemically blackened finish

RoHS

On request

Ball chains with other lengths

EN 5337.13 Plastic Five-Lobed Knobs, with Steel Threaded Stud, with Loss Protection sketch

Hide technical drawing

Part Options / Table

Loss protection

P	With plastic ball chain

Part Number	d₁	d₂	Length l	d₃	h₁	h₂	h₃	r

5337.13-25-M5-10-P	0.98	M 5	0.39	0.51	0.75	0.31	0.11	0.79
5337.13-25-M5-16-P	0.98	M 5	0.63	0.51	0.75	0.31	0.11	0.79
5337.13-25-M5-20-P	0.98	M 5	0.79	0.51	0.75	0.31	0.11	0.79
5337.13-25-M5-25-P	0.98	M 5	0.98	0.51	0.75	0.31	0.11	0.79
5337.13-32-M6-16-P	1.26	M 6	0.63	0.59	0.91	0.39	0.11	0.83
5337.13-32-M6-20-P	1.26	M 6	0.79	0.59	0.91	0.39	0.11	0.83
5337.13-32-M6-25-P	1.26	M 6	0.98	0.59	0.91	0.39	0.11	0.83
5337.13-32-M6-30-P	1.26	M 6	1.18	0.59	0.91	0.39	0.11	0.83
5337.13-40-M8-20-P	1.57	M 8	0.79	0.67	1.06	0.47	0.11	0.85
5337.13-40-M8-25-P	1.57	M 8	0.98	0.67	1.06	0.47	0.11	0.85
5337.13-40-M8-30-P	1.57	M 8	1.18	0.67	1.06	0.47	0.11	0.85
5337.13-40-M8-40-P	1.57	M 8	1.57	0.67	1.06	0.47	0.11	0.85
5337.13-50-M10-20-P	1.97	M 10	0.79	0.75	1.26	0.55	0.11	0.89
5337.13-50-M10-25-P	1.97	M 10	0.98	0.75	1.26	0.55	0.11	0.89
5337.13-50-M10-30-P	1.97	M 10	1.18	0.75	1.26	0.55	0.11	0.89
5337.13-50-M10-40-P	1.97	M 10	1.57	0.75	1.26	0.55	0.11	0.89
5337.13-63-M12-30-P	2.48	M 12	1.18	0.87	1.46	0.63	0.11	0.94
5337.13-63-M12-40-P	2.48	M 12	1.57	0.87	1.46	0.63	0.11	0.94
5337.13-63-M12-50-P	2.48	M 12	1.97	0.87	1.46	0.63	0.11	0.94

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	Length l				d₃	h₁	h₂	h₃	r

0.98	M 5	0.39	0.63	0.79	0.98	0.51	0.75	0.31	0.11	0.79
1.26	M 6	0.63	0.79	0.98	1.18	0.59	0.91	0.39	0.11	0.83
1.57	M 8	0.79	0.98	1.18	1.57	0.67	1.06	0.47	0.11	0.85
1.97	M 10	0.79	0.98	1.18	1.57	0.75	1.26	0.55	0.11	0.89
2.48	M 12	1.18	1.57	1.97	-	0.87	1.46	0.63	0.11	0.94

Build & Price

Selected Part

Part Number

Total (net)

Mex$399.30

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	9	Mex$399.30
10	249	Mex$384.78
250	499	Mex$363.00
≥ 500		Mex$326.70

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.019 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
