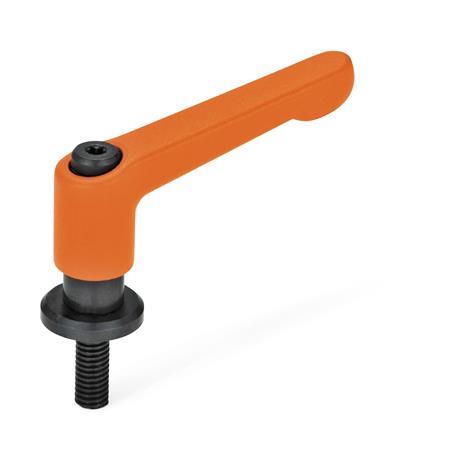

Adjustable Levers GN 307

Color: OS - Orange, RAL 2004, textured finish

Standard Sheet GN 307 Print This Page Strength Values of Screws

Product description

Adjustable levers GN 307 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The insert is connected to the lever via serrations that can easily be disengaged.

Pulling the lever upwards disengages the serrations, allowing it to be swiveled to the ideal clamping position. When releasing the lever, the serrations automatically re-engage.

The washer cannot be removed and does not turn when the lever is actuated. It protects the clamped surface from damage. One typical application is to use the hand lever for slotted holes.

Specification

Lever body
Zinc die-cast
Powder coated

Black, RAL 9005, textured finishSW
Orange, RAL 2004, textured finishOS
Red, RAL 3000, textured finishRS
Silver, RAL 9006, textured finishSR

Threaded stud / retaining screw
Steel, blackened finish
Property class 5.8

Washer
Steel

Case-hardened
Blackened finish

RoHS

Selected Part

Part Number SW	Part Number OS	Part Number RS	Part Number SR	l₁	d₁	l₂	d₂	d₃	d₄	l₃	h₁	h₂	h₃	h₄ Stroke	s


307-30-M5-12-SW	307-30-M5-12-OS	307-30-M5-12-RS	307-30-M5-12-SR	1.18	M 5	0.47	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
307-30-M5-16-SW	307-30-M5-16-OS	307-30-M5-16-RS	307-30-M5-16-SR	1.18	M 5	0.63	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
307-30-M5-20-SW	307-30-M5-20-OS	307-30-M5-20-RS	307-30-M5-20-SR	1.18	M 5	0.79	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
307-30-M5-25-SW	307-30-M5-25-OS	307-30-M5-25-RS	307-30-M5-25-SR	1.18	M 5	0.98	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
307-30-M5-32-SW	307-30-M5-32-OS	307-30-M5-32-RS	307-30-M5-32-SR	1.18	M 5	1.26	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
307-45-M6-16-SW	307-45-M6-16-OS	307-45-M6-16-RS	307-45-M6-16-SR	1.77	M 6	0.63	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
307-45-M6-20-SW	307-45-M6-20-OS	307-45-M6-20-RS	307-45-M6-20-SR	1.77	M 6	0.79	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
307-45-M6-25-SW	307-45-M6-25-OS	307-45-M6-25-RS	307-45-M6-25-SR	1.77	M 6	0.98	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
307-45-M6-32-SW	307-45-M6-32-OS	307-45-M6-32-RS	307-45-M6-32-SR	1.77	M 6	1.26	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
307-45-M6-40-SW	307-45-M6-40-OS	307-45-M6-40-RS	307-45-M6-40-SR	1.77	M 6	1.57	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
307-63-M8-20-SW	307-63-M8-20-OS	307-63-M8-20-RS	307-63-M8-20-SR	2.48	M 8	0.79	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
307-63-M8-25-SW	307-63-M8-25-OS	307-63-M8-25-RS	307-63-M8-25-SR	2.48	M 8	0.98	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
307-63-M8-32-SW	307-63-M8-32-OS	307-63-M8-32-RS	307-63-M8-32-SR	2.48	M 8	1.26	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
307-63-M8-40-SW	307-63-M8-40-OS	307-63-M8-40-RS	307-63-M8-40-SR	2.48	M 8	1.57	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
307-63-M8-50-SW	307-63-M8-50-OS	307-63-M8-50-RS	307-63-M8-50-SR	2.48	M 8	1.97	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
307-78-M10-20-SW	307-78-M10-20-OS	307-78-M10-20-RS	307-78-M10-20-SR	3.07	M 10	0.79	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16
307-78-M10-25-SW	307-78-M10-25-OS	307-78-M10-25-RS	307-78-M10-25-SR	3.07	M 10	0.98	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16
307-78-M10-32-SW	307-78-M10-32-OS	307-78-M10-32-RS	307-78-M10-32-SR	3.07	M 10	1.26	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16
307-78-M10-40-SW	307-78-M10-40-OS	307-78-M10-40-RS	307-78-M10-40-SR	3.07	M 10	1.57	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16
307-78-M10-50-SW	307-78-M10-50-OS	307-78-M10-50-RS	307-78-M10-50-SR	3.07	M 10	1.97	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16

l₁	d₁	l₂	d₂	d₃	d₄	l₃	h₁	h₂	h₃	h₄ Stroke	s

1.18	M 5	0.47	0.63	0.79	0.98	1.26	0.51	0.39	0.51	0.02	0.96	0.16	1.22	0.14	0.10
1.77	M 6	0.63	0.79	0.98	1.26	1.57	0.59	0.39	0.51	0.02	0.96	0.16	1.34	0.14	0.12
2.48	M 8	0.79	0.98	1.26	1.57	1.97	0.79	0.53	0.69	0.02	1.22	0.26	1.77	0.16	0.14
3.07	M 10	0.79	0.98	1.26	1.57	1.97	0.98	0.63	0.83	0.02	1.42	0.47	2.13	0.16	0.16

Part Number

Total (net)

Mex$375.00

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$375.00
50	99	Mex$343.75
100	249	Mex$312.50
≥ 250		Mex$281.25

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.065 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
