Adjustable Levers GN 300.4

Color: SW - Black, RAL 9005, textured finish

Product description

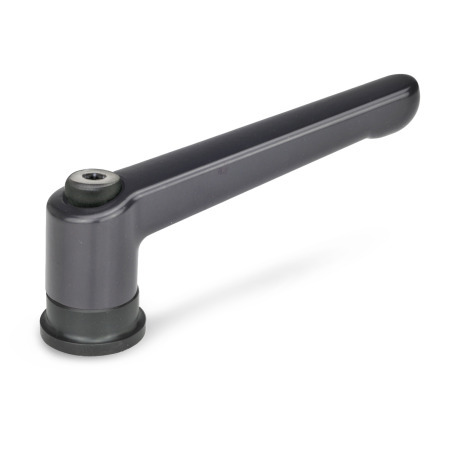

An extension of the GN 300 version, the adjustable levers GN 300.4 function the same as normal adjustable levers, but are produced with a clamping area which is linked via an axial bearing to the insert and screw of the adjustable lever.

This design creates a clamping force that is doubled through vastly reduced friction. There is no movement on the contact area between the lever and component, greatly reducing any marring of the surface of the clamping area. The increased clamping force also results in a reduced creep factor.

Specification

Lever body
Zinc die-cast

Powder coated
- Black, RAL 9005, textured finishSW
- Orange, RAL 2004, textured finishOS
- Red, RAL 3000, textured finishRS
- Silver, RAL 9006, textured finishSR
Chrome plated finishCR

Tapped insert
Steel, nitrided, blackened finish

Retaining screw
Steel, blackened finish

RoHS

On request

Black, RAL 9005, silk shiny finishSZ

Selected Part

Part Number SW	Part Number OS	Part Number RS	Part Number SR	Part Number CR	l₁	d₁	d₃	d₄	h₁	h₃	h₄ Stroke	t min.


6NAK1K	300.4-63-M6-OS	300.4-63-M6-RS	300.4-63-M6-SR	300.4-63-M6-CR	2.48	M 6	0.94	0.69	1.36	1.91	0.16	0.49
8NAK2K	8NAK2O	300.4-78-M8-RS	300.4-78-M8-SR	300.4-78-M8-CR	3.07	M 8	0.98	0.83	1.56	2.30	0.16	0.55
10NAK3K	10NAK3O	300.4-92-M10-RS	300.4-92-M10-SR	300.4-92-M10-CR	3.62	M 10	1.18	0.94	1.83	2.70	0.16	0.71
12NAK4K	300.4-108-M12-OS	300.4-108-M12-RS	300.4-108-M12-SR	300.4-108-M12-CR	4.25	M 12	1.38	1.18	2.22	3.23	0.20	1.04

l₁	d₁	d₃	d₄	h₁	h₃	h₄ Stroke	t min.

2.48	M 6	0.94	0.69	1.36	1.91	0.16	0.49
3.07	M 8	0.98	0.83	1.56	2.30	0.16	0.55
3.62	M 10	1.18	0.94	1.83	2.70	0.16	0.71
4.25	M 12	1.38	1.18	2.22	3.23	0.20	1.04

Part Number

Total (net)

Mex$973.20

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	249	Mex$973.20
250	499	Mex$892.10
500	999	Mex$811.00
≥ 1000		Mex$729.90

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.207 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
