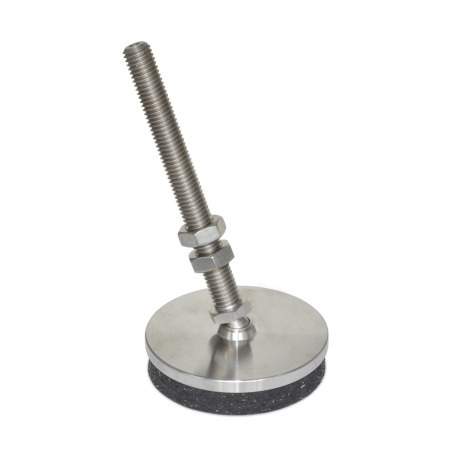

LP 100.1 Anti-Vibration Leveling Mounts Stainless Steel, Threaded Stud Type, Low Profile

Type: D - With heavy duty pad

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet LP 100.1 Print This Page Stainless Steel Characteristics

Product description

Anti-vibration leveling mounts LP 100.1 are for medium to heavy duty applications. These durable mounts are utilized where a lower base height is required.

A coupling nut is not recommended to use for installation. Use a nut or tapped hole of 1 - 1 1/2 times the thread diameter of the threaded stud.

To insure a proper leveling mount size, divide the machine weight by the number of mounts required. This will equal the pounds or load per mount.

Two hex nuts are included with each leveling mount.

Specification

Base / threaded stud
Stainless steel AISI 303

Vibration damping pad
Rubber, waffle-style

Hex nuts
Stainless steel AISI 303

RoHS

On request

Metric sizes

Hide technical drawing

Part Options / Table

Type

A	Without pad
B	With light duty pad
D	With heavy duty pad

Part Number	d₁	d₂	l₁	l₂	l₃	l₄ Light duty pad	Heavy duty pad	A/F (Inch)	Max. load Light duty pad	Without pad / heavy duty pad

6T3LP6	2.00	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T3LD5	2.00	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T3HD5	2.00	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4LP6	2.00	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4LD5	2.00	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4HD5	2.00	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6LP6	2.00	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6LD5	2.00	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6HD5	2.00	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8LP6	2.00	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8LD5	2.00	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8HD5	2.00	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T3LP7	2.50	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T3LD6	2.50	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T3HD6	2.50	3/8 x 16	3.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4LP7	2.50	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4LD6	2.50	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T4HD6	2.50	3/8 x 16	4.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6LP7	2.50	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6LD6	2.50	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T6HD6	2.50	3/8 x 16	6.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8LP7	2.50	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8LD6	2.50	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
6T8HD6	2.50	3/8 x 16	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
8T3LP6	2.00	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LD5	2.00	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3HD5	2.00	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LP6	2.00	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LD5	2.00	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4HD5	2.00	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LP6	2.00	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LD5	2.00	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6HD5	2.00	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LP6	2.00	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LD5	2.00	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8HD5	2.00	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LP7	2.50	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LD6	2.50	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3HD6	2.50	1/2 x 13	3.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LP7	2.50	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LD6	2.50	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4HD6	2.50	1/2 x 13	4.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LP7	2.50	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LD6	2.50	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6HD6	2.50	1/2 x 13	6.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LP7	2.50	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LD6	2.50	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8HD6	2.50	1/2 x 13	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LP8	3.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LD7	3.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3HD7	3.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LP8	3.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LD7	3.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4HD7	3.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LP8	3.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LD7	3.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6HD7	3.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LP8	3.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LD7	3.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8HD7	3.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LP9	4.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3LD8	4.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T3HD8	4.00	1/2 x 13	3.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LP9	4.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4LD8	4.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T4HD8	4.00	1/2 x 13	4.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LP9	4.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6LD8	4.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T6HD8	4.00	1/2 x 13	6.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LP9	4.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8LD8	4.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
8T8HD8	4.00	1/2 x 13	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
10T3LP6	2.00	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LD5	2.00	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3HD5	2.00	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LP6	2.00	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LD5	2.00	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4HD5	2.00	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LP6	2.00	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LD5	2.00	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6HD5	2.00	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LP6	2.00	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LD5	2.00	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8HD5	2.00	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LP7	2.50	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LD6	2.50	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3HD6	2.50	5/8 x 11	3.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LP7	2.50	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LD6	2.50	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4HD6	2.50	5/8 x 11	4.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LP7	2.50	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LD6	2.50	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6HD6	2.50	5/8 x 11	6.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LP7	2.50	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LD6	2.50	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8HD6	2.50	5/8 x 11	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LP8	3.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LD7	3.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3HD7	3.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LP8	3.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LD7	3.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4HD7	3.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LP8	3.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LD7	3.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6HD7	3.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LP8	3.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LD7	3.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8HD7	3.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LP9	4.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LD8	4.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3HD8	4.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LP9	4.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LD8	4.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4HD8	4.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LP9	4.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LD8	4.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6HD8	4.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LP9	4.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LD8	4.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8HD8	4.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LPR	6.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3LD9	6.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T3HD9	6.00	5/8 x 11	3.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LPR	6.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4LD9	6.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T4HD9	6.00	5/8 x 11	4.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LPR	6.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6LD9	6.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T6HD9	6.00	5/8 x 11	6.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LPR	6.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8LD9	6.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
10T8HD9	6.00	5/8 x 11	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
11T3LP8	3.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3LD7	3.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3HD7	3.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LP8	3.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LD7	3.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4HD7	3.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LP8	3.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LD7	3.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6HD7	3.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LP8	3.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LD7	3.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8HD7	3.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3LP9	4.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3LD8	4.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3HD8	4.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LP9	4.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LD8	4.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4HD8	4.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LP9	4.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LD8	4.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6HD8	4.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LP9	4.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LD8	4.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8HD8	4.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3LPR	6.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3LD9	6.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T3HD9	6.00	3/4 x 10	3.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LPR	6.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4LD9	6.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T4HD9	6.00	3/4 x 10	4.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LPR	6.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6LD9	6.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T6HD9	6.00	3/4 x 10	6.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LPR	6.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8LD9	6.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
11T8HD9	6.00	3/4 x 10	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁			d₂	l₁				l₂	l₃	l₄ Light duty pad	Heavy duty pad	A/F (Inch)	Max. load Light duty pad	Without pad / heavy duty pad

2.00	2.50	-	3/8 x 16	3.00	4.00	6.00	8.00	0.97	0.34	0.42	0.57	3/4	1500 lbf (6672.33 N)	2000 lbf (8896.44 N)
2.00	2.50	-	1/2 x 13	3.00	4.00	6.00	8.00	0.97	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
3.00	4.00	-	1/2 x 13	3.00	4.00	6.00	8.00	1.04	0.34	0.42	0.57	3/4	3000 lbf (13344.66 N)	3500 lbf (15568.77 N)
2.00	2.50	-	5/8 x 11	3.00	4.00	6.00	8.00	0.97	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
3.00	4.00	6.00	5/8 x 11	3.00	4.00	6.00	8.00	1.04	0.34	0.42	0.57	7/8	4500 lbf (20016.99 N)	5000 lbf (22241.1 N)
3.00	4.00	6.00	3/4 x 10	3.00	4.00	6.00	8.00	1.04	0.34	0.42	0.57	1 1/16	5500 lbf (24465.21 N)	6000 lbf (26689.32 N)
