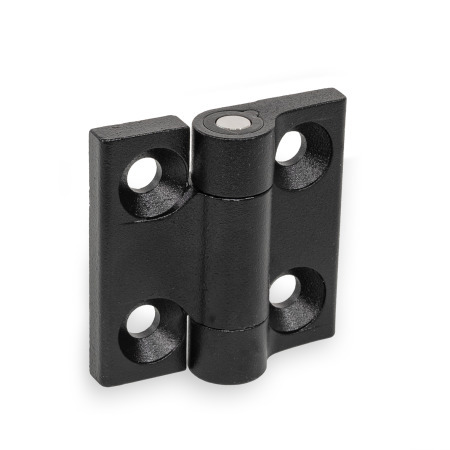

Hinges GN 437.4

Type: 2 - Holding torque 1 Nm
Color: SW - Black, RAL 9005, textured finish

Standard Sheet GN 437.4 Print This Page List of Hinge Types Load Rating Information Plastic Characteristics Stainless Steel Characteristics

Product description

Hinges GN 437.4 hold door and covers in the given indexing position without additional mechanics.

This is particularly advantageous when machines and systems must frequently be opened and closed for loading and unloading, and it is also useful for servicing or repairs. Undesirable independent closing and opening is prevented.

Due to the front indexing position of approx. -3°, type C also ensures that the door or flap is pressed lightly against the frame when closed.

Specification

Hinge leafs
Zinc die-castZD
Powder coated

Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR

Indexing elements / Cover cap

Plastic, Polyacetal (POM)
for identification no. 1 / 2
Operating temperature up to 176 °F (80 °C)
Stainless steel AISI 630
for identification no. 3 / 4

Pin
Stainless steel AISI 303

Compression spring

Spring steel for identification no. 1 / 2
Stainless steel AISI 301 for identification no. 3 / 4

RoHS

Accessory

Spacer Plates GN 2370
Spacer Plates with Tapped Holes GN 2372

Selected Part

Part Number A - Indexing positions -90°, 0°, 90° and 180°	Part Number C - Indexing positions -3° and 117°	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	Max. holding torque in Nm Tolerance Identification no. 1 / 2	Identification no. 3 / 4

437.4-ZD-60-60-A1-SW		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	±10 %	-
	437.4-ZD-60-60-C1-SW	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	±10 %	-
437.4-ZD-60-60-A1-SR		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	±10 %	-
	437.4-ZD-60-60-C1-SR	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	±10 %	-

Part Number A - Indexing positions -90°, 0°, 90° and 180°	Part Number C - Indexing positions -3° and 117°	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	Max. holding torque in Nm Tolerance Identification no. 1 / 2	Identification no. 3 / 4

437.4-ZD-60-60-A2-SW		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	±10 %	-
	437.4-ZD-60-60-C2-SW	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	±10 %	-
437.4-ZD-60-60-A2-SR		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	±10 %	-
	437.4-ZD-60-60-C2-SR	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	±10 %	-

Part Number A - Indexing positions -90°, 0°, 90° and 180°	Part Number C - Indexing positions -3° and 117°	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	Max. holding torque in Nm Tolerance Identification no. 1 / 2	Identification no. 3 / 4

437.4-ZD-60-60-A3-SW		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	-	±20 %
	437.4-ZD-60-60-C3-SW	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	-	±20 %
437.4-ZD-60-60-A3-SR		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	-	±20 %
	437.4-ZD-60-60-C3-SR	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	-	±20 %

Part Number A - Indexing positions -90°, 0°, 90° and 180°	Part Number C - Indexing positions -3° and 117°	l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	Max. holding torque in Nm Tolerance Identification no. 1 / 2	Identification no. 3 / 4

437.4-ZD-60-60-A4-SW		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	-	±20 %
	437.4-ZD-60-60-C4-SW	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	-	±20 %
437.4-ZD-60-60-A4-SR		2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	-	±20 %
	437.4-ZD-60-60-C4-SR	2.36	2.36	0.33	0.73	0.30	0.37	-	0.79	1.42	1.42	-	±20 %

l₁	l₂	d	h₁	h₂	h₃	h₄	l₃	m₁	m₂	Max. holding torque in Nm Tolerance Identification no. 1 / 2	Identification no. 3 / 4

2.36	2.36	0.33	0.73	0.30	0.37	0.75	0.79	1.42	1.42	±10 %	±20 %

Part Number

Total (net)

Mex$864.60

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$1,210.44
100	249	Mex$1,109.57
250	499	Mex$1,008.70
≥ 500		Mex$907.83

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.335 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
