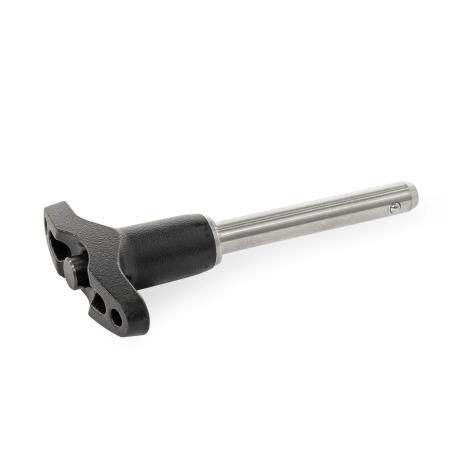

GN 113.20 Ball Lock Pins Stainless Steel, Aluminum Handle

Ball Lock Pins GN 113.20: Stainless Steel, Aluminum Handle

Type: T - With T-handle
Material: A - Stainless steel AISI 303

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

List of Lock Pin Types Load Rating Information ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Ball lock pins GN 113.20 are used for quick fixing, connecting and locking of various parts and workpieces. Typically, they are used as bearing bolts that have to be frequently assembled and disassembled.

The two balls are unlocked by pressing the spring-loaded button and locked again when released.

The hardened pin of version C has high wear resistance and tensile strength, making it suitable for applications involving heavy elements.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).

Specification

Shank pin

Stainless steel AISI 303A
Stainless steel AISI 630C
Precipitation hardened

Balls
Stainless steel AISI 420C

Handle
Aluminum
Powder coated
Black, RAL 9005, textured finish

Spring
Stainless steel AISI 631

Operating temperature
-22 °F to +302 °F (-30 °C to +150 °C)

RoHS

Accessory

Retaining Cables GN 111.8 (with Mounting Taps)
Retaining Cables GN 111.8 (with Key Rings / Mounting Tab)
Press-Fit Drill Bushings DIN 172 (with Flange)
Press-Fit Drill Bushings DIN 179 (without Flange)
Holding Bushings GN 1140

GN 113.20 Aluminum Ball Lock Pins, with Stainless Steel sketch

Hide technical drawing

Part Options / Table

Type

P	With mushroom shaped handle
L	With L-handle
T	With T-handle

Part Number P - With mushroom shaped handle	Part Number L - With L-handle	Part Number T - With T-handle	d₁ -0.002 / -0.003	l₁ +0.02	d₂	d₃ Type P	Type L / T	d₄	l₂ ±0.04	l₃ Type P	Type L	Type T	l₄ Type L	Type T	l₅	Locating bore H11

113.20-5-10-P-A			0.197 -0.002 / -0.003	0.39 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-10-L-A		0.197 -0.002 / -0.003	0.39 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-10-T-A	0.197 -0.002 / -0.003	0.39 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-15-P-A			0.197 -0.002 / -0.003	0.59 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-15-L-A		0.197 -0.002 / -0.003	0.59 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-15-T-A	0.197 -0.002 / -0.003	0.59 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-20-P-A			0.197 -0.002 / -0.003	0.79 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-20-L-A		0.197 -0.002 / -0.003	0.79 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-20-T-A	0.197 -0.002 / -0.003	0.79 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-25-P-A			0.197 -0.002 / -0.003	0.98 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-25-L-A		0.197 -0.002 / -0.003	0.98 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-25-T-A	0.197 -0.002 / -0.003	0.98 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-30-P-A			0.197 -0.002 / -0.003	1.18 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-30-L-A		0.197 -0.002 / -0.003	1.18 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-30-T-A	0.197 -0.002 / -0.003	1.18 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-6-10-P-A			0.236 -0.002 / -0.003	0.39 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-10-L-A		0.236 -0.002 / -0.003	0.39 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-10-T-A	0.236 -0.002 / -0.003	0.39 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-15-P-A			0.236 -0.002 / -0.003	0.59 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-15-L-A		0.236 -0.002 / -0.003	0.59 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-15-T-A	0.236 -0.002 / -0.003	0.59 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-20-P-A			0.236 -0.002 / -0.003	0.79 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-20-L-A		0.236 -0.002 / -0.003	0.79 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-20-T-A	0.236 -0.002 / -0.003	0.79 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-25-P-A			0.236 -0.002 / -0.003	0.98 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-25-L-A		0.236 -0.002 / -0.003	0.98 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-25-T-A	0.236 -0.002 / -0.003	0.98 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-30-P-A			0.236 -0.002 / -0.003	1.18 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-30-L-A		0.236 -0.002 / -0.003	1.18 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-30-T-A	0.236 -0.002 / -0.003	1.18 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-35-P-A			0.236 -0.002 / -0.003	1.38 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-35-L-A		0.236 -0.002 / -0.003	1.38 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-35-T-A	0.236 -0.002 / -0.003	1.38 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-40-P-A			0.236 -0.002 / -0.003	1.57 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-40-L-A		0.236 -0.002 / -0.003	1.57 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-40-T-A	0.236 -0.002 / -0.003	1.57 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-45-P-A			0.236 -0.002 / -0.003	1.77 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-45-L-A		0.236 -0.002 / -0.003	1.77 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-45-T-A	0.236 -0.002 / -0.003	1.77 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-50-P-A			0.236 -0.002 / -0.003	1.97 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-50-L-A		0.236 -0.002 / -0.003	1.97 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-50-T-A	0.236 -0.002 / -0.003	1.97 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-8-20-P-A			0.315 -0.002 / -0.003	0.79 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-20-L-A		0.315 -0.002 / -0.003	0.79 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-20-T-A	0.315 -0.002 / -0.003	0.79 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-25-P-A			0.315 -0.002 / -0.003	0.98 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-25-L-A		0.315 -0.002 / -0.003	0.98 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-25-T-A	0.315 -0.002 / -0.003	0.98 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-30-P-A			0.315 -0.002 / -0.003	1.18 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-30-L-A		0.315 -0.002 / -0.003	1.18 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-30-T-A	0.315 -0.002 / -0.003	1.18 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-35-P-A			0.315 -0.002 / -0.003	1.38 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-35-L-A		0.315 -0.002 / -0.003	1.38 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-35-T-A	0.315 -0.002 / -0.003	1.38 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-40-P-A			0.315 -0.002 / -0.003	1.57 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-40-L-A		0.315 -0.002 / -0.003	1.57 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-40-T-A	0.315 -0.002 / -0.003	1.57 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-45-P-A			0.315 -0.002 / -0.003	1.77 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-45-L-A		0.315 -0.002 / -0.003	1.77 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-45-T-A	0.315 -0.002 / -0.003	1.77 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-50-P-A			0.315 -0.002 / -0.003	1.97 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-50-L-A		0.315 -0.002 / -0.003	1.97 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-50-T-A	0.315 -0.002 / -0.003	1.97 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-10-20-P-A			0.394 -0.002 / -0.003	0.79 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-20-L-A		0.394 -0.002 / -0.003	0.79 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-20-T-A	0.394 -0.002 / -0.003	0.79 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-25-P-A			0.394 -0.002 / -0.003	0.98 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-25-L-A		0.394 -0.002 / -0.003	0.98 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-25-T-A	0.394 -0.002 / -0.003	0.98 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-30-P-A			0.394 -0.002 / -0.003	1.18 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-30-L-A		0.394 -0.002 / -0.003	1.18 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-30-T-A	0.394 -0.002 / -0.003	1.18 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-35-P-A			0.394 -0.002 / -0.003	1.38 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-35-L-A		0.394 -0.002 / -0.003	1.38 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-35-T-A	0.394 -0.002 / -0.003	1.38 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-40-P-A			0.394 -0.002 / -0.003	1.57 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-40-L-A		0.394 -0.002 / -0.003	1.57 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-40-T-A	0.394 -0.002 / -0.003	1.57 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-45-P-A			0.394 -0.002 / -0.003	1.77 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-45-L-A		0.394 -0.002 / -0.003	1.77 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-45-T-A	0.394 -0.002 / -0.003	1.77 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-50-P-A			0.394 -0.002 / -0.003	1.97 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-50-L-A		0.394 -0.002 / -0.003	1.97 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-50-T-A	0.394 -0.002 / -0.003	1.97 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-60-P-A			0.394 -0.002 / -0.003	2.36 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-60-L-A		0.394 -0.002 / -0.003	2.36 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-60-T-A	0.394 -0.002 / -0.003	2.36 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-12-25-P-A			0.472 -0.002 / -0.003	0.98 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-25-L-A		0.472 -0.002 / -0.003	0.98 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-25-T-A	0.472 -0.002 / -0.003	0.98 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-30-P-A			0.472 -0.002 / -0.003	1.18 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-30-L-A		0.472 -0.002 / -0.003	1.18 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-30-T-A	0.472 -0.002 / -0.003	1.18 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-35-P-A			0.472 -0.002 / -0.003	1.38 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-35-L-A		0.472 -0.002 / -0.003	1.38 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-35-T-A	0.472 -0.002 / -0.003	1.38 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-40-P-A			0.472 -0.002 / -0.003	1.57 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-40-L-A		0.472 -0.002 / -0.003	1.57 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-40-T-A	0.472 -0.002 / -0.003	1.57 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-45-P-A			0.472 -0.002 / -0.003	1.77 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-45-L-A		0.472 -0.002 / -0.003	1.77 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-45-T-A	0.472 -0.002 / -0.003	1.77 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-50-P-A			0.472 -0.002 / -0.003	1.97 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-50-L-A		0.472 -0.002 / -0.003	1.97 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-50-T-A	0.472 -0.002 / -0.003	1.97 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-60-P-A			0.472 -0.002 / -0.003	2.36 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-60-L-A		0.472 -0.002 / -0.003	2.36 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-60-T-A	0.472 -0.002 / -0.003	2.36 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-70-P-A			0.472 -0.002 / -0.003	2.76 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-70-L-A		0.472 -0.002 / -0.003	2.76 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-70-T-A	0.472 -0.002 / -0.003	2.76 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-80-P-A			0.472 -0.002 / -0.003	3.15 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-80-L-A		0.472 -0.002 / -0.003	3.15 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-80-T-A	0.472 -0.002 / -0.003	3.15 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47

Part Number P - With mushroom shaped handle	Part Number L - With L-handle	Part Number T - With T-handle	d₁ -0.002 / -0.003	l₁ +0.02	d₂	d₃ Type P	Type L / T	d₄	l₂ ±0.04	l₃ Type P	Type L	Type T	l₄ Type L	Type T	l₅	Locating bore H11

113.20-5-10-P-C			0.197 -0.002 / -0.003	0.39 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-10-L-C		0.197 -0.002 / -0.003	0.39 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-10-T-C	0.197 -0.002 / -0.003	0.39 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-15-P-C			0.197 -0.002 / -0.003	0.59 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-15-L-C		0.197 -0.002 / -0.003	0.59 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-15-T-C	0.197 -0.002 / -0.003	0.59 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-20-P-C			0.197 -0.002 / -0.003	0.79 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-20-L-C		0.197 -0.002 / -0.003	0.79 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-20-T-C	0.197 -0.002 / -0.003	0.79 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-25-P-C			0.197 -0.002 / -0.003	0.98 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-25-L-C		0.197 -0.002 / -0.003	0.98 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-25-T-C	0.197 -0.002 / -0.003	0.98 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-5-30-P-C			0.197 -0.002 / -0.003	1.18 +0.02	0.22	0.44	-	0.79	0.24 ±0.04	0.69	-	-	-	-	-	0.20
	113.20-5-30-L-C		0.197 -0.002 / -0.003	1.18 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	1.22	-	1.72	-	0.50	0.20
		113.20-5-30-T-C	0.197 -0.002 / -0.003	1.18 +0.02	0.22	-	0.46	-	0.24 ±0.04	-	-	1.23	-	1.78	0.50	0.20
113.20-6-10-P-C			0.236 -0.002 / -0.003	0.39 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-10-L-C		0.236 -0.002 / -0.003	0.39 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-10-T-C	0.236 -0.002 / -0.003	0.39 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-15-P-C			0.236 -0.002 / -0.003	0.59 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-15-L-C		0.236 -0.002 / -0.003	0.59 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-15-T-C	0.236 -0.002 / -0.003	0.59 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-20-P-C			0.236 -0.002 / -0.003	0.79 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-20-L-C		0.236 -0.002 / -0.003	0.79 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-20-T-C	0.236 -0.002 / -0.003	0.79 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-25-P-C			0.236 -0.002 / -0.003	0.98 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-25-L-C		0.236 -0.002 / -0.003	0.98 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-25-T-C	0.236 -0.002 / -0.003	0.98 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-30-P-C			0.236 -0.002 / -0.003	1.18 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-30-L-C		0.236 -0.002 / -0.003	1.18 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-30-T-C	0.236 -0.002 / -0.003	1.18 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-35-P-C			0.236 -0.002 / -0.003	1.38 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-35-L-C		0.236 -0.002 / -0.003	1.38 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-35-T-C	0.236 -0.002 / -0.003	1.38 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-40-P-C			0.236 -0.002 / -0.003	1.57 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-40-L-C		0.236 -0.002 / -0.003	1.57 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-40-T-C	0.236 -0.002 / -0.003	1.57 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-45-P-C			0.236 -0.002 / -0.003	1.77 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-45-L-C		0.236 -0.002 / -0.003	1.77 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-45-T-C	0.236 -0.002 / -0.003	1.77 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-6-50-P-C			0.236 -0.002 / -0.003	1.97 +0.02	0.28	0.44	-	0.79	0.28 ±0.04	0.69	-	-	-	-	-	0.24
	113.20-6-50-L-C		0.236 -0.002 / -0.003	1.97 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	1.22	-	1.72	-	0.50	0.24
		113.20-6-50-T-C	0.236 -0.002 / -0.003	1.97 +0.02	0.28	-	0.46	-	0.28 ±0.04	-	-	1.23	-	1.78	0.50	0.24
113.20-8-20-P-C			0.315 -0.002 / -0.003	0.79 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-20-L-C		0.315 -0.002 / -0.003	0.79 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-20-T-C	0.315 -0.002 / -0.003	0.79 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-25-P-C			0.315 -0.002 / -0.003	0.98 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-25-L-C		0.315 -0.002 / -0.003	0.98 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-25-T-C	0.315 -0.002 / -0.003	0.98 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-30-P-C			0.315 -0.002 / -0.003	1.18 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-30-L-C		0.315 -0.002 / -0.003	1.18 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-30-T-C	0.315 -0.002 / -0.003	1.18 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-35-P-C			0.315 -0.002 / -0.003	1.38 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-35-L-C		0.315 -0.002 / -0.003	1.38 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-35-T-C	0.315 -0.002 / -0.003	1.38 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-40-P-C			0.315 -0.002 / -0.003	1.57 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-40-L-C		0.315 -0.002 / -0.003	1.57 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-40-T-C	0.315 -0.002 / -0.003	1.57 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-45-P-C			0.315 -0.002 / -0.003	1.77 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-45-L-C		0.315 -0.002 / -0.003	1.77 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-45-T-C	0.315 -0.002 / -0.003	1.77 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-8-50-P-C			0.315 -0.002 / -0.003	1.97 +0.02	0.37	0.56	-	0.98	0.32 ±0.04	0.89	-	-	-	-	-	0.31
	113.20-8-50-L-C		0.315 -0.002 / -0.003	1.97 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	1.38	-	1.96	-	0.62	0.31
		113.20-8-50-T-C	0.315 -0.002 / -0.003	1.97 +0.02	0.37	-	0.58	-	0.32 ±0.04	-	-	1.39	-	2.03	0.62	0.31
113.20-10-20-P-C			0.394 -0.002 / -0.003	0.79 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-20-L-C		0.394 -0.002 / -0.003	0.79 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-20-T-C	0.394 -0.002 / -0.003	0.79 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-25-P-C			0.394 -0.002 / -0.003	0.98 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-25-L-C		0.394 -0.002 / -0.003	0.98 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-25-T-C	0.394 -0.002 / -0.003	0.98 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-30-P-C			0.394 -0.002 / -0.003	1.18 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-30-L-C		0.394 -0.002 / -0.003	1.18 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-30-T-C	0.394 -0.002 / -0.003	1.18 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-35-P-C			0.394 -0.002 / -0.003	1.38 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-35-L-C		0.394 -0.002 / -0.003	1.38 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-35-T-C	0.394 -0.002 / -0.003	1.38 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-40-P-C			0.394 -0.002 / -0.003	1.57 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-40-L-C		0.394 -0.002 / -0.003	1.57 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-40-T-C	0.394 -0.002 / -0.003	1.57 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-45-P-C			0.394 -0.002 / -0.003	1.77 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-45-L-C		0.394 -0.002 / -0.003	1.77 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-45-T-C	0.394 -0.002 / -0.003	1.77 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-50-P-C			0.394 -0.002 / -0.003	1.97 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-50-L-C		0.394 -0.002 / -0.003	1.97 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-50-T-C	0.394 -0.002 / -0.003	1.97 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-10-60-P-C			0.394 -0.002 / -0.003	2.36 +0.02	0.47	0.56	-	0.98	0.38 ±0.04	0.89	-	-	-	-	-	0.39
	113.20-10-60-L-C		0.394 -0.002 / -0.003	2.36 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	1.38	-	1.96	-	0.62	0.39
		113.20-10-60-T-C	0.394 -0.002 / -0.003	2.36 +0.02	0.47	-	0.58	-	0.38 ±0.04	-	-	1.39	-	2.03	0.62	0.39
113.20-12-25-P-C			0.472 -0.002 / -0.003	0.98 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-25-L-C		0.472 -0.002 / -0.003	0.98 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-25-T-C	0.472 -0.002 / -0.003	0.98 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-30-P-C			0.472 -0.002 / -0.003	1.18 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-30-L-C		0.472 -0.002 / -0.003	1.18 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-30-T-C	0.472 -0.002 / -0.003	1.18 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-35-P-C			0.472 -0.002 / -0.003	1.38 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-35-L-C		0.472 -0.002 / -0.003	1.38 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-35-T-C	0.472 -0.002 / -0.003	1.38 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-40-P-C			0.472 -0.002 / -0.003	1.57 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-40-L-C		0.472 -0.002 / -0.003	1.57 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-40-T-C	0.472 -0.002 / -0.003	1.57 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-45-P-C			0.472 -0.002 / -0.003	1.77 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-45-L-C		0.472 -0.002 / -0.003	1.77 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-45-T-C	0.472 -0.002 / -0.003	1.77 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-50-P-C			0.472 -0.002 / -0.003	1.97 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-50-L-C		0.472 -0.002 / -0.003	1.97 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-50-T-C	0.472 -0.002 / -0.003	1.97 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-60-P-C			0.472 -0.002 / -0.003	2.36 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-60-L-C		0.472 -0.002 / -0.003	2.36 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-60-T-C	0.472 -0.002 / -0.003	2.36 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-70-P-C			0.472 -0.002 / -0.003	2.76 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-70-L-C		0.472 -0.002 / -0.003	2.76 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-70-T-C	0.472 -0.002 / -0.003	2.76 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47
113.20-12-80-P-C			0.472 -0.002 / -0.003	3.15 +0.02	0.57	0.70	-	1.38	0.42 ±0.04	1.07	-	-	-	-	-	0.47
	113.20-12-80-L-C		0.472 -0.002 / -0.003	3.15 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	1.35	-	2.25	-	0.80	0.47
		113.20-12-80-T-C	0.472 -0.002 / -0.003	3.15 +0.02	0.57	-	0.72	-	0.42 ±0.04	-	-	1.37	-	2.33	0.80	0.47

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ -0.002 / -0.003	l₁ +0.02									d₂	d₃ Type P	Type L / T	d₄	l₂ ±0.04	l₃ Type P	Type L	Type T	l₄ Type L	Type T	l₅	Locating bore H11

0.197	0.39	0.59	0.79	0.98	1.18	-	-	-	-	0.22	0.44	0.46	0.79	0.24	0.69	1.22	1.23	1.72	1.78	0.50	0.20
0.236	0.39	0.59	0.79	0.98	1.18	1.38	1.57	1.77	1.97	0.28	0.44	0.46	0.79	0.28	0.69	1.22	1.23	1.72	1.78	0.50	0.24
0.315	0.79	0.98	1.18	1.38	1.57	1.77	1.97	-	-	0.37	0.56	0.58	0.98	0.32	0.89	1.38	1.39	1.96	2.03	0.62	0.31
0.394	0.79	0.98	1.18	1.38	1.57	1.77	1.97	2.36	-	0.47	0.56	0.58	0.98	0.38	0.89	1.38	1.39	1.96	2.03	0.62	0.39
0.472	0.98	1.18	1.38	1.57	1.77	1.97	2.36	2.76	3.15	0.57	0.70	0.72	1.38	0.42	1.07	1.35	1.37	2.25	2.33	0.80	0.47

Build & Price

Selected Part

Part Number

Total (net)

Mex$993.60

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$993.60
100	249	Mex$910.80
250	499	Mex$828.00
≥ 500		Mex$745.20

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.026 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: +52(81)2721-4021

CAD data

Need Help?

Our service team is available from Monday to Friday between 8:00 AM and 6:00 PM Central Time: +52(81)2721-4021

Special Requests | Contact our sales team

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

GN 113.20 Ball Lock Pins Stainless Steel, Aluminum Handle

Product Family Stainless Steel

Product description

Specification

Accessory

Part Options / Table

Type

Material: A - Stainless steel AISI 303

Material: C - Stainless steel AISI 630

Metric

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 111.8

GN 111.8

NEW DIN 172

NEW DIN 179

GN 1140

Your Contact

JW Winco Services
