GN 6336.11 Star Knobs Plastic, with Stainless Steel Threaded Stud, with Ball End

Star Knobs GN 6336.11: Plastic, with Stainless Steel Threaded Stud, with Ball End

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 6336.11 Print This Page Plastic Characteristics Stainless Steel Characteristics

Product description

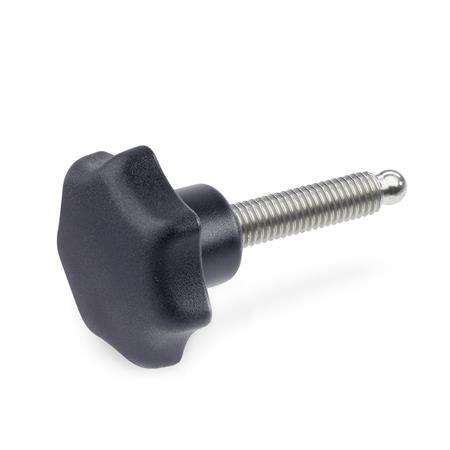

Star knobs GN 6336.11 with stainless steel threaded stud have a ball end whose diameter is smaller than the core diameter of the thread.

These components are an excellent choice for corrosion-free applications.

Specification

Knob
Plastic, Polyamide (PA)
Black, matte finish

Threaded stud
Stainless steel AISI 304Cu

RoHS

Accessory

Thrust Pads GN 631.2 (NBR)
Thrust Pads GN 631.5 (Stainless Steel)

Hide technical drawing

Part Options / Table

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁	d₂	l₁	d₄	d₅ +0.002	h₁	h₂	l₂

6336.11-32-M6-25	1.26	M 6	0.98	0.55	0.177 +0.002	0.79	0.39	0.20
6336.11-32-M6-35	1.26	M 6	1.38	0.55	0.177 +0.002	0.79	0.39	0.20
6336.11-32-M6-45	1.26	M 6	1.77	0.55	0.177 +0.002	0.79	0.39	0.20
6336.11-40-M8-30	1.57	M 8	1.18	0.71	0.240 +0.002	0.98	0.51	0.24
6336.11-40-M8-40	1.57	M 8	1.57	0.71	0.240 +0.002	0.98	0.51	0.24
6336.11-40-M8-50	1.57	M 8	1.97	0.71	0.240 +0.002	0.98	0.51	0.24
6336.11-40-M8-60	1.57	M 8	2.36	0.71	0.240 +0.002	0.98	0.51	0.24
6336.11-50-M10-35	1.97	M 10	1.38	0.87	0.307 +0.002	1.26	0.67	0.29
6336.11-50-M10-45	1.97	M 10	1.77	0.87	0.307 +0.002	1.26	0.67	0.29
6336.11-50-M10-55	1.97	M 10	2.17	0.87	0.307 +0.002	1.26	0.67	0.29
6336.11-50-M10-65	1.97	M 10	2.56	0.87	0.307 +0.002	1.26	0.67	0.29
6336.11-63-M12-40	2.48	M 12	1.57	1.02	0.370 +0.002	1.57	0.83	0.33
6336.11-63-M12-60	2.48	M 12	2.36	1.02	0.370 +0.002	1.57	0.83	0.33
6336.11-63-M12-80	2.48	M 12	3.15	1.02	0.370 +0.002	1.57	0.83	0.33

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂	l₁				d₄	d₅ +0.002	h₁	h₂	l₂

1.26	M 6	0.98	1.38	1.77	-	0.55	0.177	0.79	0.39	0.20
1.57	M 8	1.18	1.57	1.97	2.36	0.71	0.240	0.98	0.51	0.24
1.97	M 10	1.38	1.77	2.17	2.56	0.87	0.307	1.26	0.67	0.29
2.48	M 12	1.57	2.36	3.15	-	1.02	0.370	1.57	0.83	0.33

Build & Price

Selected Part

Part Number

Total (net)

Mex$70.80

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	99	Mex$70.80
100	249	Mex$64.90
250	499	Mex$59.00
≥ 500		Mex$53.10

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.026 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
