Cover boots GN 808.1 provide universal joints protection against dirt, dust and other debris.
They can also be filled with grease, which gives long term lubrication for friction bearings.
The cover boots are secured at each end with two cable ties, supplied but not assembled.
Rubber for type E
Chloroplene rubber (CR)
Black
Plastic for type D
Chlorure de polyvinyle (PVC)
Black
RoHS
| E | For single joints |

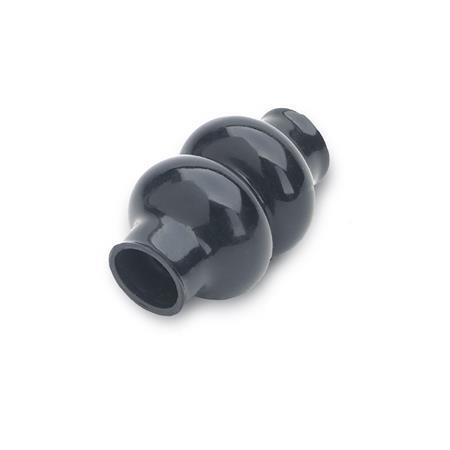

| D | For double joints |
| d1 Joint Ø | d2 Type E | d3 Type E | d4 Type D | d5 Type D | l1 Type E | l2 Type D |
|---|---|---|---|---|---|---|
| 0.63 | 0.59 | 1.10 | 0.63 | 1.38 | 1.34 | 2.17 |
| 0.87 | 0.81 | 1.57 | 0.79 | 1.42 | 1.77 | 2.56 |
| 0.98 | 0.96 | 1.89 | 0.94 | 1.73 | 1.97 | 2.76 |
| 1.10 | 1.08 | 2.05 | 1.10 | 2.01 | 2.20 | 3.15 |
| 1.26 | 1.20 | 2.20 | 1.26 | 2.44 | 2.56 | 3.54 |
| 1.42 | 1.40 | 2.60 | - | - | 2.83 | - |
| 1.65 | 1.57 | 2.95 | 1.57 | 2.87 | 3.23 | 4.72 |
| 1.77 | 1.77 | 3.31 | - | - | 3.74 | - |
| 1.97 | 1.97 | 3.62 | 1.97 | 3.54 | 4.25 | 6.10 |
| 2.28 | 2.20 | 3.94 | - | - | 4.80 | - |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Show / Hide columns
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Cross holes in universal joint shafts and in universal shafts are suitable for making shaft-hub connections using a pin or a grub screw. For bores with keyway or square, they serve to secure the axial position of the universal joint and shaft. The d2 pin hole with H11 tolerance is intended for use with spiral spring pins.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
