EN 664 Filler Strainers Plastic, Vertical Installation

ELESA original design
code: FRB+C
Bildvarianten_d1: G - Thread
With-IF-Award-Icon
Standard Sheet EN 664 Print This Page Mounting Dimensions (Hole Pattern) Plastic Characteristics

Product description

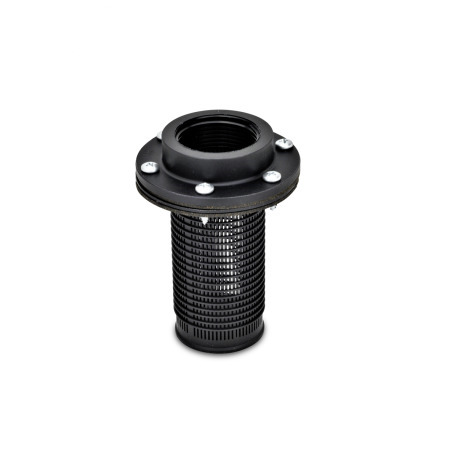

Filler strainers EN 664 have a mounting flange for threaded or bayonet mount (BA) mounting of the breather cap. The strainer prevents the penetration of coarse impurities during the filling process.

Six self-tapping screws are included.

  1. Breather caps are to be ordered separately.

Specification

  • Threaded flange
    Plastic
    Technopolymer (Polyamide PA)
    • Glass fiber reinforced
    • Black, matte finish
  • Filler strainer
    Plastic
    Technopolymer (Polypropylene PP)
    • Glass fiber reinforced
    • Black, matte finish
    • Temperature resistant up to 194 °F (90 °C)
  • Flange for bayonet mounting
    Steel, zinc plated, blue passivated finish
  • Seal
    Cork, impregnated with rubber

RoHS

On request

  • Mounting flange without filler strainer
