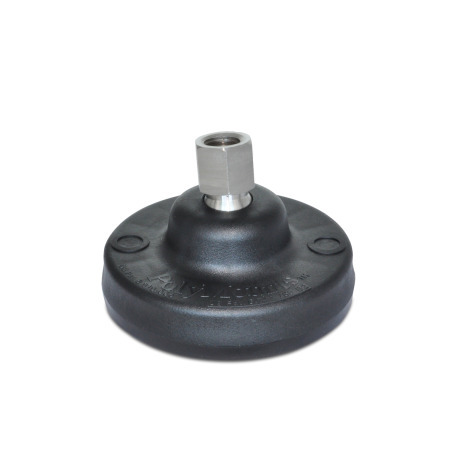

"PolyMount"™ Leveling Mounts PM 500.1

Type: A - Without pad

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet PM 500.1 Print This Page Plastic Characteristics Stainless Steel Characteristics

Product description

"PolyMount"^TM leveling mounts PM 500.1 are an economical choice for light, medium, and heavy-duty applications.

The mount swivels 15° to all sides of the center line to adjust to uneven surfaces.

A tool such as a screwdriver is necessary to pop out the tabs for access to the mounting holes.

To determine the proper mount size and required load per mount, divide the equipment’s weight by the number of mounts needed.

Specification

Base
Nylon plastic
- Glass fiber reinforced
- With pop-out mounting holes

Tapped socket
Stainless steel AISI 303
Forged

Rubber pad
Elastomer, non-skid

RoHS

On request

Metric sizes
"Socket Lock" technology to lock tapped socket into place, preventing pullout in especially harsh applications

Part Number A - Without pad	Part Number E - With rubber pad	d₁	d₂	l₁	l₂	l₃	A/F	t	Max. load


10TWR4	10TWR4N	5.00	5/8 x 11	3.00	0.83	0.315	1.06	0.75	10000 lbf (44482.22 N)
11TWR4	11TWR4N	5.00	3/4 x 10	3.00	0.83	0.315	1.06	0.75	10000 lbf (44482.22 N)
12TWR4	12TWR4N	5.00	1 x 8	3.00	0.83	0.315	1.38	0.75	10000 lbf (44482.22 N)
35TWR4	35TWR4N	5.00	1 1/8 x 7	3.00	0.83	0.315	1.38	0.75	10000 lbf (44482.22 N)

d₁	d₂	l₁	l₂	l₃	A/F	t	Max. load

5.00	5/8 x 11	3.00	0.83	0.315	1.06	0.75	10000 lbf (44482.22 N)
5.00	3/4 x 10	3.00	0.83	0.315	1.06	0.75	10000 lbf (44482.22 N)
5.00	1 x 8	3.00	0.83	0.315	1.38	0.75	10000 lbf (44482.22 N)
5.00	1 1/8 x 7	3.00	0.83	0.315	1.38	0.75	10000 lbf (44482.22 N)

d₁

d₂

l₁

l₂

l₃

A/F

Max. load

5.00

5/8 x 11

3.00

0.83

0.315

1.06

0.75

10000 lbf (44482.22 N)

5.00

3/4 x 10

3.00

0.83

0.315

1.06

0.75

10000 lbf (44482.22 N)

5.00

1 x 8

3.00

0.83

0.315

1.38

0.75

10000 lbf (44482.22 N)

5.00

1 1/8 x 7

3.00

0.83

0.315

1.38

0.75

10000 lbf (44482.22 N)

Selected Part

Part Number

Total (net)

Mex$982.20

Available within 2 weeks

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (Mexican Pesos).

Min	Max	Price
1	49	Mex$982.20
50	99	Mex$900.35
100	249	Mex$818.50
≥ 250		Mex$736.65

Prop 65: -

Please contact our Sales Department for more information.

RoHS: -

No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.

Weight: -

If the weight is not listed, please contact our Sales Department for more information.
